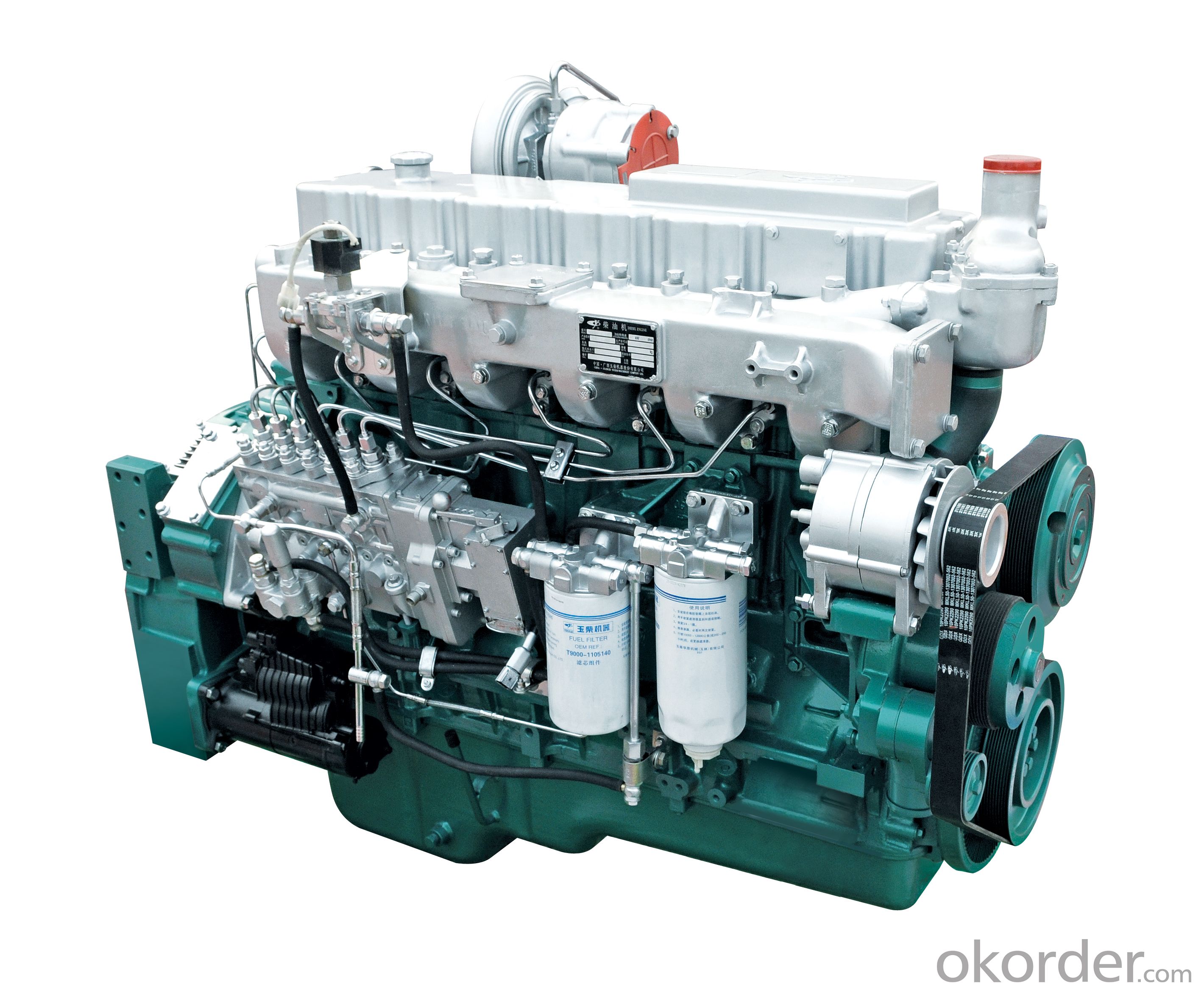

Yuchai YC6M (160-250kW) Series Engines for Generators
· The integrated crankshaft, postposition gear chamber and point-line gear-meshing patent technology reduce noise level
· Wet cylinder liner structure facilitates maintenance and repair
· High mean effective pressure and power density
· Improved fuel consumption by P7100 fuel pump, P-injector and Honeywell turbocharger
· Yuchai sealing technology in piston ring and valve oil seal improves lube oil consumption
· High fuel efficiency and low maintenance cost
· Reliable cold starts at -25℃ and applicable altitude at ≤2500m without derating
· Major overhaul period is more than 12000 hours
YC6M
TECHNICAL SPECIFICATIONS
Model | YC6M265Z-D20 | YC6M265Z-D20 | YC6M265Z-D20 | YC6M265Z-D20 | YC6M265Z-D20 |
Configuration | Vertical, in-line, 6-cylinder, Water-cooled, 4-stroke | ||||
Aspiration | Turbocharged | Turbocharged and air to air inter-cooled | |||
Bore ×Stroke (mm) | 120 ×145 | ||||
Displacement (L) | 9.84 | ||||
Compression ration | 17.5:1 | ||||
Prime power/Speed (kW/r/min) | 177/1800 | 235/1500 | 240/1800 | 235/1500 | 280/1800 |
Standby power/Speed (kW/r/min) | 194.7/1800 | 258.5/1500 | 264/1800 | 258.5/1500 | 308/1800 |
Fuel consumption g/(kW·h) | ≤200 | ≤197 | ≤195 | ||
Oil capacity (L) | 28 | ||||
Oil consumption g/(kW·h) | ≤1 | ||||
Starting method | Electric | ||||
Noise Lw dB(A) | ≤102 | ||||
Emission | T2 | T3 | |||
Applicable altitude (m) | ≤250 | ||||
Engine dimension (L×W×H) (mm) | 1680 ×950 ×1440 | ||||
Dry weight (kg) | 980 | ||||
