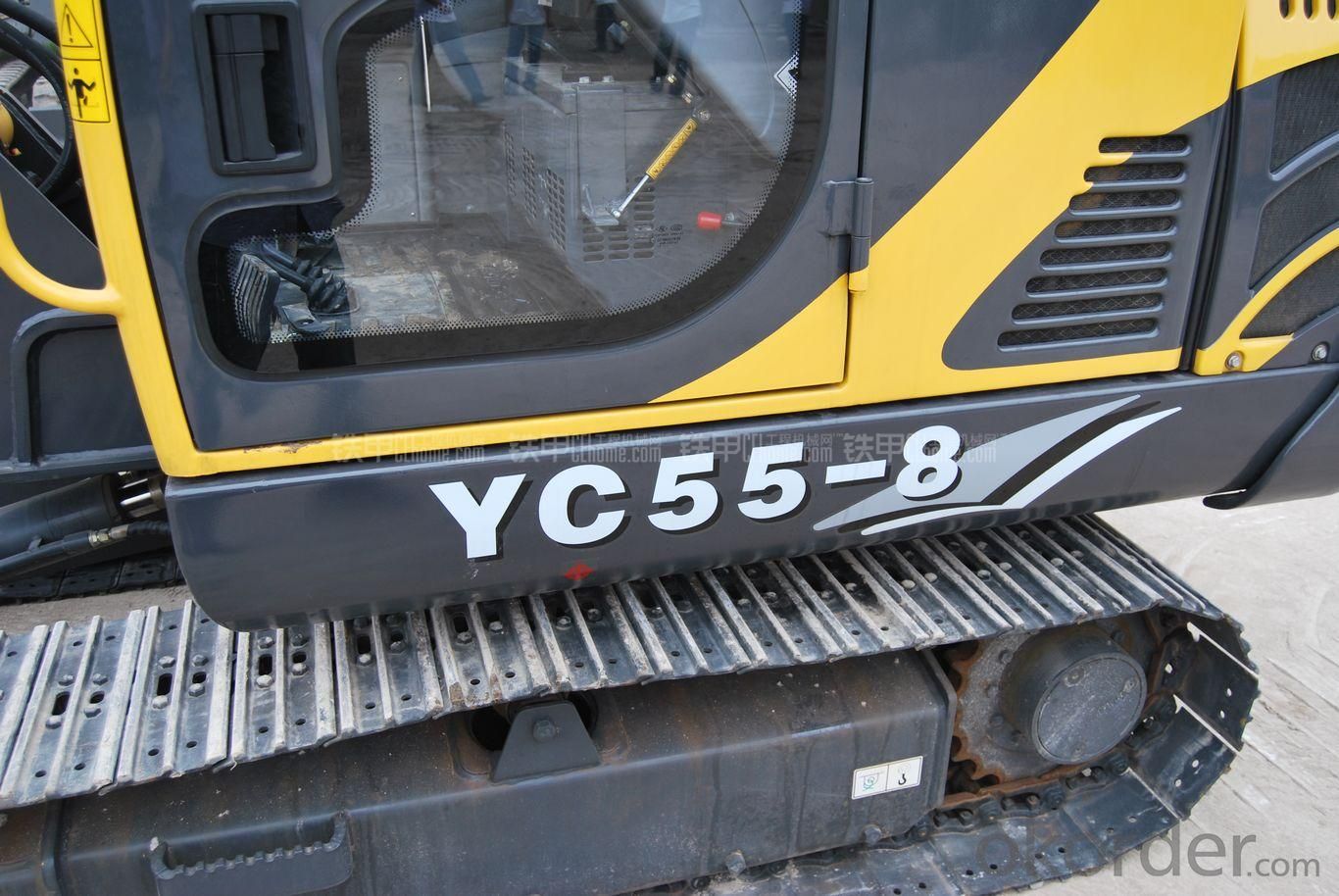

Yuchai YC55-8 5.5ton excavator

Product Description:

Established in 1989, Guangxi Yuchai Heavy Industry Co., Ltd is a Sino-foreign joint venture enterprise controlled by Yuchai Machinery Group Co., Ltd. It is located in Yulin City, which is reputed as “the city south of the Five Ridges”. Currently, Yuchai Heavy Industry’s industrial layout covers many Chinese provinces such as Tianjin, Jiangsu, Sichuan and overseas areas such as Europe, North America and Africa.

Yuchai Heavy Industry now possesses a total asset of RMB 7 billion Yuan, more than 3,500 employees including over 30 personnel who have master’s degree, doctor’s degree or title of a senior professional post. With an annual capacity to produce 20,000 sets of construction machinery, it is the major export base for small-size excavators in China and the domestic excavator manufacturer with the most complete product spectrum. It was honored as the “National Hi-Tech Enterprise” and selected as the one of the “TOP50 Construction Machinery Manufacturers in the World” in 2011.

As directed by the core concept “Green develop & harmony win-win” and the grand goal “to build the company into a hundred-billion-worth aircraft-carrier-like enterprise”, Yuchai Heavy Industry is meeting endless challenges with an aggressive spirit, and is striding forward towards its goals to “realize a sales volume of 30 billion Yuan in 2015” and to “build the world-renowned construction machinery brand”!

yuchai YC55-8 5.5ton excavator

Code Item Unit YC55-8

A Max. Digging Height mm 5700

B Max. Dumping Height mm 3855

C Max. Digging Depth mm 3789

D Max. Digging Radius mm 6380

D1 Max. Horizontal Digging Length mm 6196

E Max. Digging Height Radius mm 4127

F Min. Slewing Radius mm 2670

G Max. Depth of Bulldozer mm 397

H Max. Height of Bulldozer mm 251

　 Max. Digging Force kN 37.3

Code Item Unit YC55-8

　 Operating Weight kg 5710

　 Standard Bucket Capacity m³ 0.2

　 Engine 　 YANMAR4TNV94L-XBKC
CUMMINS B3.3

　 Power of Engine kw/rpm 39/2200 | 45/2200

A Machine Length mm 6065

B Machine Height mm 2550

C Overall Width mm 1910

D Crawler Width mm 400

F Crawler Length mm 2455

G Wheel-Base mm 1910

H Min. Ground Clearance mm 340

I Overall Height mm 2275

J Width of Platform mm 1830

K Height of Engine Hood mm 1670

L Height from floor to platform mm 695

　 Width of Bucket mm 656

　 Walking Speed(Low/High) km/h 2.8/4.7

　 Platform Slewing Speed rpm 10.5

　 Cab 　

　 Canopy 　 　

　 The Deflexion 　

　 Boom Swing Angle (Left/Right) ° 70/50
