Yellow 3528 Taiwan Epistar LED Chip

Loading Port:Hong Kong

Payment Terms:L/C,T/T

Min Order Qty:1 Roll/Rolls pc

Supply Capability:100000 Rolls Per Month pc/month

Product Description:

‍General Introduction

Yellow 3528 Taiwan Epistar LED chip

Specification

Commodity	LED 3528 SMD
Model NO.	GM-3528UYC
Dimension	3.5mm2.8mm1.9mm
LED Source	Epistar
Light Color	Yellow
Color temperature	585-592nm
Working voltage	1.9-2.3V
LED luminous Intensity	1LM
Color Rendering Index(CRI)	Ra ≥ 80
Life Span	50000H
Certificate	CE & RoHS

Package	1Box (=1000pcs)

Package

1Box (=1000pcs)

Full Details for all SMD

Item	Wavelength/CCT	Intensity	Voltage	Power

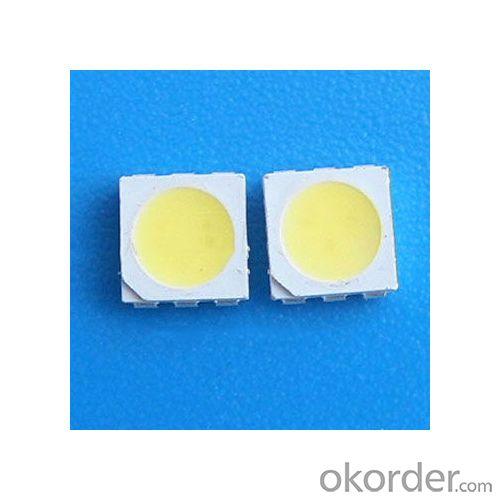

SMD5050 white	5500-6000k	14-20LM	3.0-3.5v	0.18W
	6000-6500k	14-20LM	3.0-3.5v	0.18W
	6500-7000k	14-20LM	3.0-3.5v	0.18W
	7000-7500k	14-20LM	3.0-3.5v	0.18W
	7500-8000k	14-20LM	3.0-3.5v	0.18W
SMD5050 reddish white	2000-2400K	14-20LM	3.0-3.5v	0.18W
SMD5050 reddish white	2400-2700k	14-20LM	3.0-3.5v	0.18W
SMD5050 Yellowish white	2800-3200K	14-20LM	3.0-3.5v	0.18W
SMD5050 Yellowish white	3200-3500K	14-20LM	3.0-3.5v	0.18W
SMD5050 cool white	8000-9000K	14-20LM	3.0-3.5v	0.18W
	9000-10000K	14-20LM	3.0-3.5v	0.18W
	10000-12000K	14-20LM	3.0-3.5v	0.18W
	12000-15000K	14-20LM	3.0-3.5v	0.18W
	20000-25000K	14-20LM	3.0-3.5v	0.18W
SMD5050 blue	460-470nm	1000-3500mcd	3.0-3.5v	0.18W
SMD5050 Amber	600-610nm	1000-3500mcd	1.9-2.2V	0.12W
SMD5050 Green	520-525nm	2500-5500mcd	3.0-3.5v	0.18W
SMD5050 Yellow	588-595nm	1200-3500mcd	1.9-2.2V	0.12W
SMD5050 Red	620-625nm	1200-3500mcd	1.9-2.2V	0.12W
SMD5050 RGB		R:350-450MCD B:250-300MCD G:900-1100MCD
Item	Wavelength/CCT	Intensity	Voltage	Power
SMD3528 white	5500-6000k	4-7LM	3.0-3.5v	0.06W
	6000-6500k	4-7LM	3.0-3.5v	0.06W
	6500-7000k	4-7LM	3.0-3.5v	0.06W
	7000-7500k	4-7LM	3.0-3.5v	0.06W
	7500-8000k	4-7LM	3.0-3.5v	0.06W
SMD3528 reddish white	2000-2400K	4-7LM	3.0-3.5v	0.06W
SMD3528 reddish white	2400-2700k	4-7LM	3.0-3.5v	0.06W
SMD3528 Yellowish white	2800-3200K	4-7LM	3.0-3.5v	0.06W
SMD3528 Yellowish white	3200-3500K	4-7LM	3.0-3.5v	0.06W
SMD3528 cool white	8000-9000K	4-7LM	3.0-3.5v	0.06W
	9000-10000K	4-7LM	3.0-3.5v	0.06W
	10000-12000K	4-7LM	3.0-3.5v	0.06W
	12000-15000K	4-7LM	3.0-3.5v	0.06W
	20000-25000K	4-7LM	3.0-3.5v	0.06W
SMD3528 blue	460-470nm	300-600mcd	3.0-3.5v	0.06W
SMD3528 Amber	600-610nm	300-500mcd	1.9-2.2V	0.04W
SMD3528 Green	520-525nm	400-2000mcd	3.0-3.5v	0.06W
SMD3528 Yellow	588-595nm	300-500mcd	1.9-2.2V	0.04W
SMD3528 Red	620-625nm	200-500mcd	1.9-2.2V	0.04W
SMD3528 RGB		R:350-450MCD B:250-300MCD G:900-1100MCD

Feature

1:5050,3528, 0805,0603,1206,1210,side view SMD.

2.colors avialable :red ,green ,yellow,blue ,white etc.

3.saving energy and environment protection.

4.luminous intensity:15-18LM.

5.flexible viewing angle ,long lifespan and low power consumption.

6.Solid -state,shock and vibration resistant.

7.RoSh compliant decide excellent quality.

IF: 20mA,

Beam Angle: 120°

High Brightness, large view angle, Low Power dissipation, high cost-effective.

Operation temperature: -40 - 95 degrees celsius. Life span: 50000 hours.

Packaging & Delivery

Package:

2000pcs SMD packed in 1ROLL.

Delivery:

Shipping Service	Estimated Delivery Time
DHL	2-8 business days
FedEx	3-8 business days
TNT	2-10 business days
UPS	1-7 business days
EMS	6-14 business days
ePacket	7-12 business days
China Post Air Mail	7-15 business days
China Post SAL	14-30 business days
By sea	30-40 business days

1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.

2. "Business days" means Monday-Friday, excluding holidays.

3. DHL and UPS cannot ship to military or P.O. boxes address.

4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
