Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-

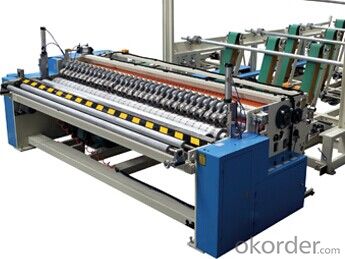

Automatic Trimming , Sealing, Embossing and Perforating Rewinder adopt advanced PLC technology,variable speed adjustment,electronic braking, and touch button multi-menu type LCD screen operation control panel. And we independently developed long-distance communication service system. It can detect the machine running at any time. Also the machine is newly added coreless roller shaped rewinding system. It's adopt PLC wind pipe-shaped new technology .It's no need to put core or stainless steel pipe. It's full upgrade the whole machine.
Main features :
1. Automatic core loading and replacing. The logs are automatically pushed out after finishing winding, and then start winding again. The cores can be adjusted to any size of cores within one minute.
2. After finished winding the roller pushed out automatically. It's adopt mechanism arm pusher to push the roller out. The minimum diameter of finished roll is 60mm.
3. Automatic trimming, gluing and sealing: it has replaced the traditional sealing of rolls with the international popular trimming and sealing,which can have 10-18mm tails to facilit-ate to start pulling out the paper.At the same time, it can greatly cut down the wastage of the paper, thus to cut down the production cost.
4. Advanced PLC programmable control technology: The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.
5. Automatic detection of paper break and paper wrap up: to guarantee the high quality of the finished rolls even in the high speed operation.
6. Coreless rewinding systemhas changed the traditional method to take out the core to make high quality solid coreless roller. Reducing the manpower.
7. With high precision screwy perforation knife. With 4 perforation blades to make clear perforating. The perforating pitch controlled by gear box.
8. Three backstands, pneumatic jumbo roll loading, and pneumatically wide belt paper unwinding driving, and individual web tension control unit for each jumbo roll.
9. The web can be threaded on the machine by the two jog buttons, It's more safety and easier to feed the web.
Machine Model | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
Raw Material Width （mm） | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 | 2950 |
Finished Roll Diameter（mm） | Φ60~150 mm ( Tightness adjustable) | ||||||
Finished Roll Core Diameter（mm） | Φ 32～50mm | ||||||
Raw Material Diameter（mm） | Φ 1100 mm (Other sizes are available ) | ||||||
Raw Material Core Diameter | Φ76 mm (Other sizes are available ) | ||||||
Perforation Pitch(to be appoint) | 4 perforating blade 110mm; 2 perforating blade 220mm.Gear box adjustment(option) | ||||||
Speed | 200 m/min | ||||||
Parameter Setting | LCD Screen operation panel | ||||||
Programmable controller | MITSUBISHI Programmable Controller (PLC) | ||||||
Unwinding Unit | 1-3 ply,15~30gsm | ||||||
Pneumatic System | 3 HP air compressor, Mini pressure5kg/cm2 Pa(Provided by client) | ||||||
Power | Frequency conversion speed regulator, 5.5-15 kw(depend on the model and configuration) | ||||||
Dimension(L×W×H) (mm) | 6200x2600x800～6200x4000x800 | ||||||
Weight | 3800～9000kg | ||||||
Option | |||||||
Embossing Unit | Single ply embossing, double ply embossing, steel to steel embossing | ||||||
Bottom Embossing Roller | Felt roller, Paper roller, Rubber roller | ||||||
Unwinding Unit | 1-3 ply | ||||||
Unwinding Unit Driving | gear box driving | ||||||
Finished roll rewinding | Coreless rewinding system | ||||||
Edge Embossing Unit | Steel to steel | ||||||
Calendering Unit | Steel to steel, steel to rubber | ||||||
