Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:500 m
Supply Capability:50000 m/month
1) 27 Years Professional Manufacturer
2) Public Company
3) Production is around 40,000 kms
4) Complete quality management
XLPE Insulated Electrical Cable with 450/750V
1.Application:
This product is mainly designed for power equipment,instrument and
telecommunication device with rated AC voltage of 450/750V and below.
2.Electrical performance (at 250MHz):
1.0 to 100.0MHz impedance: 100 ± 15 ohms
100.0 to 250.0MHz impedance: 100 ± 22 ohms
Impedance delay screw (ns/100m): <45
Pair to ground capacitance unbalance: (PF/100m) 330 maximum
Conductor DC resistance: 20% <73.2 ohms/km
Resistance unbalance: 5%
Test object: Jacket
Test material: PVC & LSZH
Tensile strength: ≥ 13.8MPa
Aging elongation: ≥ 100%
Aging condition: 100 x 240
After tensile strength: ≥ 85% MPA of unaged
Aging elongation: ≥ 50% of aged
Cold bend (-20 ± 2° C x 4hrs): No crock
3.Specification:
227 IEC01(BV),BV,BLV | Copper(aluminum) core PVC insulated cable(wire) |
BVV,BLVV | Copper(aluminum) core PVC insulated and sheathed power cable |
277 IEC02(RV),BV | Copper core PVC insulated flexible cable(wire) |
227 IEC05(BV),BV | Copper core PVC insulated cable |
227 IEC06(RV) | Copper core PVC insulated flexible cable |
227 IEC07(BV-90) | Copper core PVC insulated heat-resisting (90°C) cable |
227 IEC08(RV-90) | Copper core PVC insulated heat-resisting (90°C) interconnecting flexible cable |
227 IEC10(BVV),BVV | Copper core PVC insulated and sheathed round cable |
227 IEC42(RVB),RVB | Copper core PVC insulated flat interconnecting flexible cable |
227IEC52(RVV) or 227IEC53(RVV) | Copper core PVC insulated and sheathed round interconnecting flexible cable |
BVR | Copper core PVC insulated flexible cable |
RVS | Copper core PVC insulated and stranded interconnecting flexible cable |
RVVB | Copper core PVC insulated and sheathed flat interconnecting flexible cable |
AV | Copper core PVC insulated installing cable |
AVR | Copper core PVC insulated flexible installing cable |
AVP | Copper core PVC insulated and screened installing wire |
RVVP | Copper core PVC insulated and sheathed screened flexible wire |
ZA-BVR-105 | Copper core flame-retardant (105°C) PVC insulated flexible cable |
ZA-RV-105 | Copper core flame-retardant (105°C) PVC insulated wire |
RVV,ZA-RVV300/500V | Copper core PVC-insulated and sheathed (flame-retardant) flexible wire |
227 IEC10(BVV),BVV | Copper core PVC insulated and sheathed round cable |
227 IEC42(RVB),RVB | Copper core PVC insulated flat interconnecting flexible cable |
227IEC52(RVV) or 227IEC53(RVV) | Copper core PVC insulated and sheathed round interconnecting flexible cable |
BVR | Copper core PVC insulated flexible cable |
RVS | Copper core PVC insulated and stranded interconnecting flexible cable |
RVVB | Copper core PVC insulated and sheathed flat interconnecting flexible cable |
AV | Copper core PVC insulated installing cable |
AVR | Copper core PVC insulated flexible installing cable |
AVP | Copper core PVC insulated and screened installing wire |
RVVP | Copper core PVC insulated and sheathed screened flexible wire |
ZA-BVR-105 | Copper core flame-retardant (105°C) PVC insulated flexible cable |
ZA-RV-105 | Copper core flame-retardant (105°C) PVC insulated wire |
RVV,ZA-RVV300/500V | Copper core PVC-insulated and sheathed (flame-retardant) flexible wire |

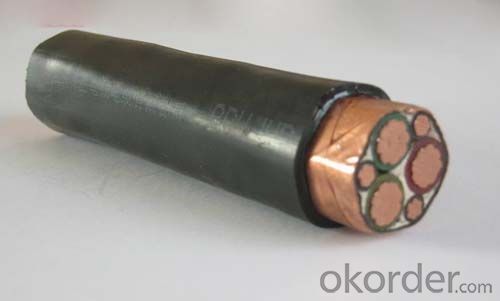

4.Picture
