Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:3 unit/month

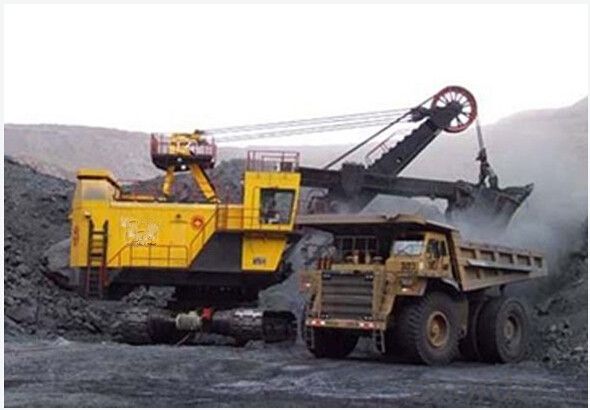

WK-12C excavators are suitable for 10 million MT mining use, to be used in combination with 80-154 MT dumpers or 100 MT dumping trains.
Product specifications:
• Gear-rack crowding, powerful penetration, high efficiency;
• Propel mechanism utilizes independent drive with planetary reducer;
• Gear transmission has gears with a high hardness surface for durability;
• Drive adopts high hand drive for improved durability;
• Air release spring disk brakes (excluding hoist brakes).
• AC IGBT drive.
Technical Spec. of WK-12C | |||
Normal bucket volume | 12m³ | Lifting motor | 2x350kW/690VAC |
Scope of bucket volume | 8m³-16m³ | Max. Excavating Radius | 18.90m |
Lifting speed | 1.50m/s | Max. Excavating Height | 13.53m |
Pushing speed | 0.58m/s | Max. Dumping Radius | 16.25m |
Traveling speed | 0.89km/h | Max. Dumping Height | 8.60m |
Max. Lifting force | 1110kN | Excavating Depth | 2.20m |
Max. Pushing force | 541kN | Working weight | 490t |
Max. Crawling angle | 13° | Theoretical Productivity | 1490m³/h |
We have established a new production base in the Binhai New Area of Tianjin to facilitate the transportation and export of large-sized equipment. Our second wheel production line is currently under construction. We have also established production lines for wheels, axles and wheel sets for use at speeds above 200 km/h.
We are now turning our focus to international markets which we are certain can benefit from our high quality products and service. As we are constantly innovating and improving, we have no doubt that we will meet and even exceed our customers’ expectations.
