Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:1 set
Supply Capability:1500 set/month
There are two kinds of fixation in traditional flat roof mount installation, one is bottom connection and the other is increasing load.
But the 1st way will break the roof surface , and the 2nd way has a requirement of roof load.

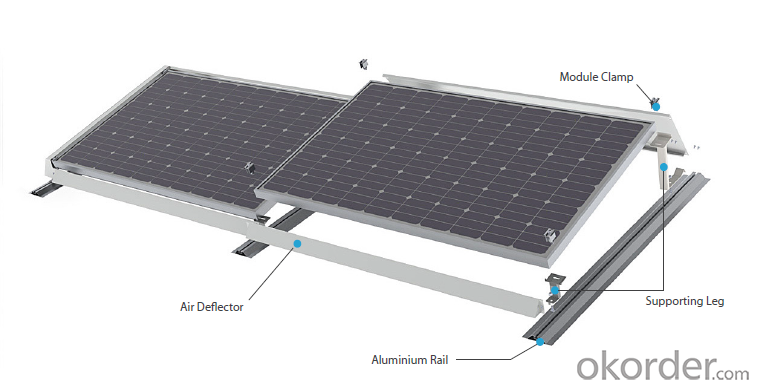

Versolsolar develops the Windstream system with in dependent hydrodynamics. The bottom of the system uses broaden Al - rail and stainless steel coaming no additional loading and roof breakage. Windstream has passed the Wind Tunnel Experiment in Technical University of Munich.
• This system is suitable for low load flat roof or space
restricted roof.
• Module installation inclination is 10º-15º.
• We use stainless steel or SuperDyma in manufacturing
for providing an excellent Anticorrosion feature.
• Also don’t worry about roof leaking because there is
no breakage in original roof structure.
Technical Data
Project site Flat roof
Module specification All modules with frame
Installation inclination 10° -15°
Module arrangement Portrait
Module area square Client arrangement
Module area position Client arrangement
Bottom frame AL 6063T5
Supporting leg Stainless steel
Deflector Zinc plated Al-Ma board or stainless steel
Small piece Stainless steel, Al 6063T5
Bottom pieces No mechanical connection, system fixation depend on self-
weight and air flow pressure.
FAQ
I..Will you focus on the safety of the goods during transportation?
Yes, Safety of the cargo is the primary element that we would consider on transportation.
II..How would guarantee the quality will meet the requirements of your clients?
Before shipment, we will have inspection for each batch of goods.
III..What certificates do you have?
IEC,UL,TUV,CSA,etc.
IV..Can you do OEM according to clients’ requirements?
Yes, we have our own brand while we can provide OEM service.
