Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:5 unit
Supply Capability:50 unit/month
Weighing Filling Machine for Metal Packaing
1. Product Description:
Check weigher with rejection,Automatic check weigher,Accurate Check weigher for production line JZ-W300011 is mainly used to check whether the single pack weight is conformed to the preset weight, and the overweight and underweight products can be removed by various reject devices automatically. qualify bags will be passed to next equipment.
2. Product Features:
SIEMENS PLC and 10" color touch screen, Intelligent compact design construction;
Auto program setting adjust for more stability and easier to operate;
Apply HBM load cell ensure high accuracy and stability (original from Germany);
Solid SUS304 structure ensure stable performance and precise weighing;
Reject arm, air blast or pneumatic pusher for selecting;
Belt disassembling without tools, which is easier to clean;
Install emergency switch at the size of machine, user friendly operation;
Arm device show clients clearly for the production situation (optional);
Can record up 10 kinds of different products parameter,
3. Product Parameters:
No. | Description | Unit | Technical data | |
1 | Qty of filling spouts | pc | 6 | |
2 | Designed bag filling capacity | t/h | 90 | |
3 | Style of material filling | Central filling | ||
4 | Style of material feeding | Impeller | ||
5 | Form of weighing device | Computerized | ||
6 | weighing Precision
| Weight of single bag | kg | 50 |
Error of single bag weight | kg | +0.4 -0.2 | ||
Total weight of successive 20 bags | kg | 1000~1004 | ||
7 | Outer diameter of rotary hopper | mm | φ1520 | |
8 | Outer diameter of filling spouts | mm | φ2250 | |
9 | Distance from a filling spout to the ground | mm | 1180 | |
10 | Max. rotary diameter | mm | φ2500 | |
11 | Driver Speed adjusting style | Frequency controller | ||
12 | Range of speed adjusting | rpm | 0~6 | |
13 | Rated rotate rate of the machine | rpm | 5 | |
14 | Power supply | AC 380V 3P 50HZ | ||
15 | Fluctuation | % | +10 -15 | |
16 | Main drive reducer | Model | BLD3-59-2.2 | |
Speed ratio | 59 | |||
17 | Main drive motor | Model | Y100L1-4 | |
Power | kW | 2.2 | ||
Rotate velocity | rpm | 1450 | ||
Protection level | IP54 | |||
18 | Filling motor | Model | Y112M-4 | |
Power | kW | 4 | ||
Rotate velocity | rpm | 1450 | ||
Protection level | IP54 | |||
Quantity | pc | 8 | ||
19 | Double-position solenoid driver | Model | MQZ2-50-300 | |
Voltage | V | 200 | ||
Range | mm | 50 | ||
Operational frequency | t/h | 360 | ||
20 | Power of whole machine | kW | 4×8+2.2=34.2 | |
21 | Dust collection airflow | m3/h | 15000 | |
22 | Dust collection air pressure | Pa | -600 | |
23 | Rotary direction of the machine | Overhead view | Clockwise/anti-clockwise | |
23 | Height of the machine | mm | 6300 | |
24 | Total weight | kg | 4160 | |
4. FAQ:
Q1: What is your delivery time?
A: Generally, the delivery time is 45-60 days after receive the deposit, big production line may take more time.
Q2: What is the payment term?
A: We accept both T/T and L/C. Most customers pay by T/T.

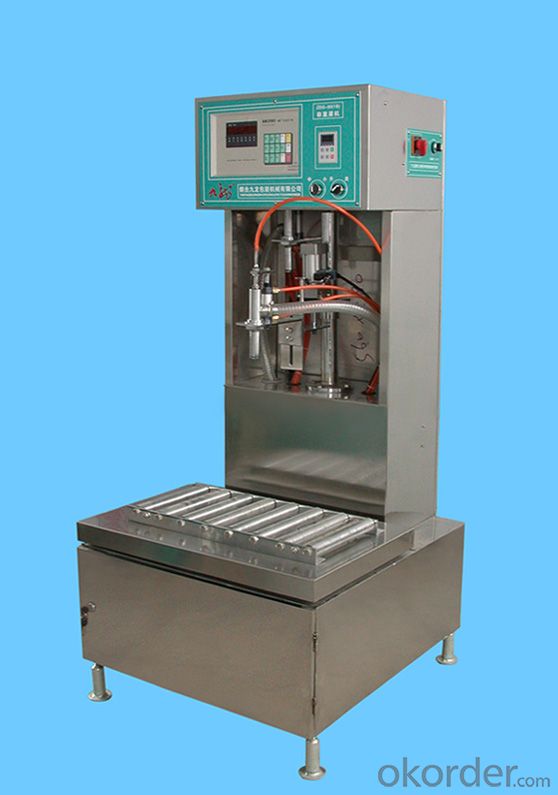

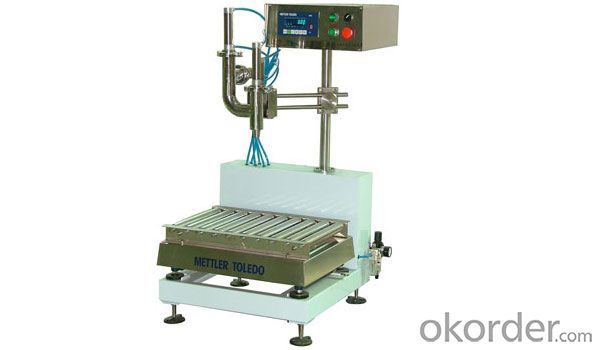

5. Product Pictures:
