Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:100 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month
Advantages
1,Direct from factory DMX&matrix module LED light
2, RGB lpd6803 LED 5050 module
2,Epistar chip with 50.000 hours
3,CE/RoHS
4, from factory with 3-5days delivery
5, OEM/ODM accept
6, LED 5050 module light with DMX 512
ADS-IC324

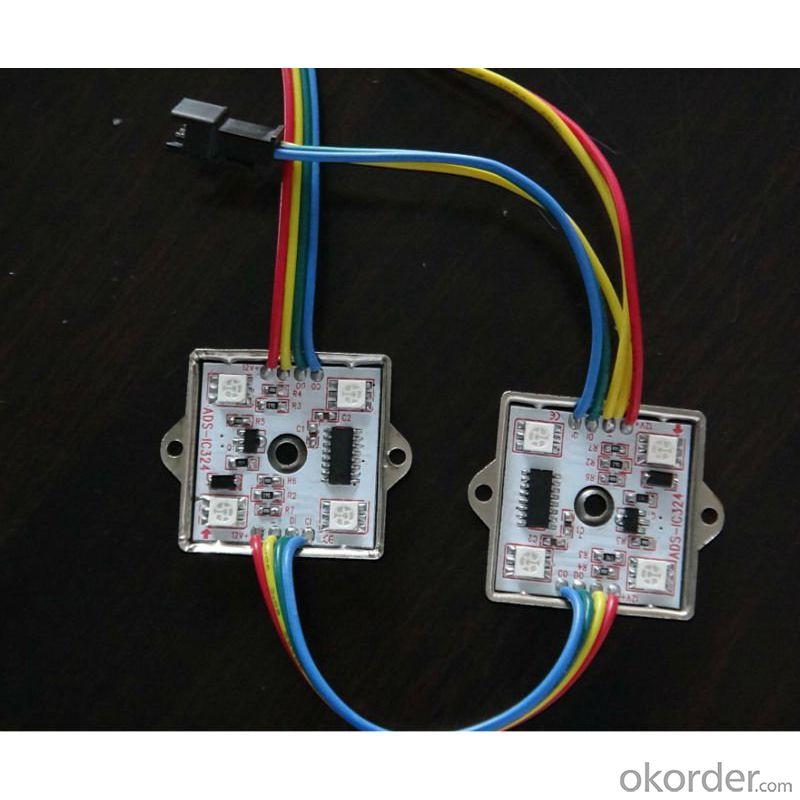

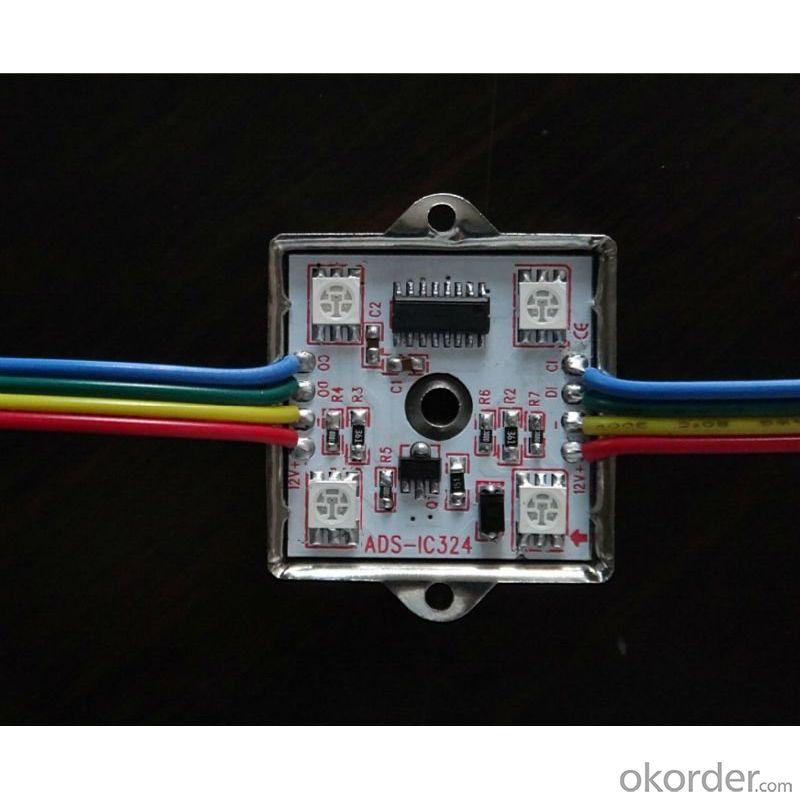

1, ADS-IC324 is a combination of a aluminum (thermostability,cold-resistant,resistant to UV) shell and PCB board, also 4 spell line with blue,green,yellow,red color.contain 4PCS 5050 SMD LED
2, This product can achieve effects of full-color running water,chasing and scanning. Depending on the different installation methods may compose different dynamic effect of different color's character and design.
3, Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.Widely used in LOGO, advertising billboard,exposed luminous characters, painted screen, can replace the traditional neon signs. The distance between the lights can be choosed as customer's request.
4, This product could be linked up to20pcc. more than 20pcs is strickly prohibited. The diameter of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters), and the voltage of transmission line.
Specification
| Items | LED Qty | Color | Wavelength Scope(nm/K) | LED | PCB dimension | units |
| ADS-IC324 | 4 | Red | 619-635K | 5050 RGB | 34*34*1.6 | 20pcs/chain |
| Green | 512-528K | |||||
| Blue | 463-475K |
ADS-IC324 Full color led single light Parameter
| Items | Parameter | Units |
| Vlotage | DC12 | V |
| Power | 0.96 | W |
| Temperature | -40-60 | °C |
| IP grage | IP66 | |
| demension | 35*35*5 | mm |
| lifespan | 50000 | hours |
| View angle | 120 | °C |
Technical Parameter of controller
| Items | Parameter |
| Input Voltage | AC110V/220V(configurate according to end-user) |
| Battery Plug | GB, UK, U.S. regulations, etc.(configurate according to end-user) |
| Power dissipation | 2w |
| Control Protocol | ICC,DMX512/1990 |
| Stand by IC | LPD6803,D705,D709,WS2801,DMX512/1990 Decoder/ Driver |
| Control points | 1200 points 2048 points 512 address(channel) |
| Gray scale | 32 level, 256 level |
| SD card | Support FAT or FAT16 files system |
| Working Temperature | –35°C—75°C |
| Play speed | Default 20 frames / sec; DIP switch can switch between 1-40, 8-level speed adjustable |
| Indicator light | power indicator light(Green,Power),Play speed light(Red,State) |
LED Module Applications
1,channel letter
2,Advertisements sign
3,KTV,Disco
4, LOGO, advertising billboard,exposed luminous characters,
5, LED display screen, painted screen
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-15 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
