Vokes® Vacuum insulation panel（VIP）fumed Silica VIPs for Building and Industrial Applications

Product Description:

Vokes® VIP (Vacuum insulation panels)

Characteristics

Vokes® VIP is an evacuated micro porous thermal insulating panel

with excellent insulating properties. Vokes® VIP

The core material of Vokes® VIP is fumed

Silica board and noncombustible. It is sealed into a high gas barrier

film under vacuum. Vokes® VIP

Application

Vokes® VIP is specially developed for insulation applications where

not much space is available but a high thermal resistance is necessary.

Vokes® VIP

Vokes® VIP is a successful insulation element in the following areas:

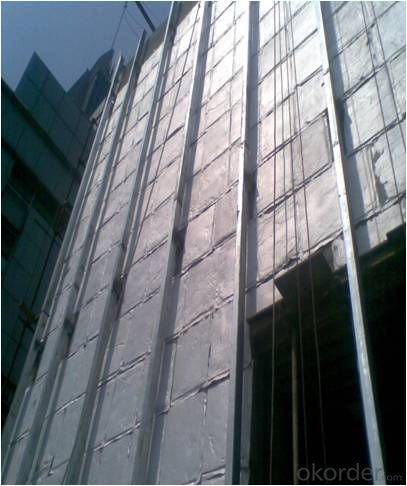

• Building appl ication (Roofs, floors, etc)

• Thermal packaging (Medicine trnasport boxes, etc.)

• Appliance (Water boiler, etc.)

• Automotive (train, ship, air plains, etc.)

Advantage

• Drastically reduced heat fluxes

• Drastically reduced insulation thickness

• Increased usable volume

• All purpose VIP with a long service life

Product data

Surface color  Silver

Geometry  Rectangular shape (without protruding flanges*)

Density  180 to 210 kg/m³

Thermal conductivity  < 0.004 W/mK

Temperature stability  -70 °C to +70 °C (due to the film)

Thermal shock resistance  Not sensitive to heat & cold shock in the given

temperature range

Humidity stability  0 % to 60 %

Internal gas pressure  1 mbar (at delivery)

Increase of gas pressure  approx. 1 mbar/year (at 20 mm thickness &

normal room conditions)

Standard dimension (L x W)(mm) 100x400/200 x600/400 x600/600 x1000/600 x1200

Thickness  10mm/15 mm/20 mm/25mm/30mm

Size tolerance

• 0 to 500 mm ±2 mm

Thickness tolerance  ± 1 mm

Specific heat capacity  0.8 kJ/(kg·K) (at normal room temperature)

U-value U  0.2 W/(m²K) (at 20 mm thickness)

Mass per area  4 kg/m² (at 20 mm thickness)

Compressive strengh  GB8813/EN8268- ≥0.15MPa

Flammability  GBB624- A

Service life  extrapolated, depending on application up to 50

years
