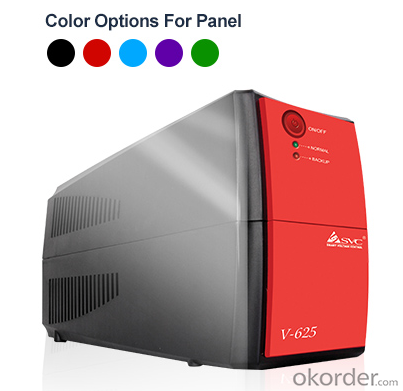

12V Portable Electrical DC To AC UPS Uninterrupted Power Supply
| Model | V-525 | V-625 |
| Capacity | 500va/300w | 600va/360w |
| INPUT | ||
| Input voltage | 110/120VAC or 220/230/240VAC | |
| Input voltage range | 90~132VAC / 175~265VAC | 85~150VAC / 145~290VAC |
| Frequency range | 60/50HZ/(Auto sensing) | |
| OUTPUT | ||
| Output voltage | 110/120VAC or 220/230/240VAC | |
| Output voltage range | 90~132VAC / 175~265VAC | 102~132VAC /200~255VAC |
| Output frequency | 60±0.5Hz or 50±0.5Hz(Batt. Mode) | |
| Output wave form | PWM(Batt. Mode) | |
| Transfer time | Typical 2-6ms, 10ms MAX / 2-6ms, 10ms | |
| BATTERY | ||
| QTY.&capacity of battery | 12V/4AH×1pc | 12V/7AH×1pc |
| Charging period | 4-6 hours recover to 90% capacity | |
| PROTECTION | ||
| Full protection | low voltage & overload & short circuit protection | |
| PHYSITAL | ||
| (kg) / Net weight (kg) | 4.5 | 5 |
| (mm) / Unit dimention (mm) | 255*98*140 | 300*95*140 |
| ENVIRONMENT | ||
| Environment of performance | Temperature 0°C~40°C, Humidity 20%~90% | |
| Noise level | Less than 40 dB | |
| MANAGEMENT | ||
| LCD or LED, RJ45/11 & USB | Optional | |
Feature:
Auto re-starts when AC recovers
Slience setup
Battery low voltage protection
Overload & short circuit protection
CPU control
Optional RJ45/11 & USB port
Wide input voltage range
Field of application
PC, Work stating
Small communication equipment
