Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1500 PCS/month

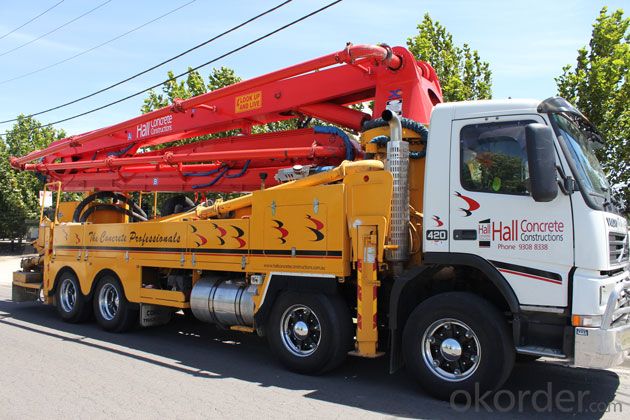

Truck-Mounted Concrete Pump Sy5271thb 38e
Model NO.:SY5271THB 38E
Type:Concrete Pump
Machining Process:Hydraulic
Certification:ISO9001: 2000, CE
Condition:New
Vertical Reach:38.0m
Horizontal Reach:34.0m
Reach Depth:21.5m
Engine Power:265kw
Total Weight:26500kg
Capacity of Fuel Tank:380 L
Displacement:Euro III
Max.Speed:80km/H
Brake Distance:≤10m/30km/H
Minimum Unfolding Reach Length:7.8m
Export Markets:Global
Trademark:Sany
Packing:Nude
Standard:CE
Origin:China
Production Capacity:1000units/Month
Open-type hydraulic system with the fully hydraulic steering, the electrohydraulic cushion, and the differential pressure response, which provides high reliability and slight steering shocking;
The pumping volume reaches 120m 3 /h, and the stepless control is adopted to meet various working conditions;
Automatic retraction of concrete piston, which facilitates the checking and the replacing;
The text display is adopted to show the operation parameters and the fault types. Also the multiple automatic protection system is equipped.
| Model | SY5271THB 38E | |||
| Overall Specification | Length | 11455mm | ||
| Width | 2500mm | |||
| Height | 3930mm | |||
| Total weight | 26500kg | |||
| Boom &Outrigger Specification | Vertical reach | 38.0m | ||
| Horizontal reach | 34.0m | |||
| Reach depth | 21.5m | |||
| Minimum unfolding reach Length | 7.8m | |||
| Arm1 | Length | 8510mm | ||
| Angle | 90° | |||
| Arm2 | Length | 7260mm | ||
| Angle | 180° | |||
| Arm3 | Length | 6000mm | ||
| Angle | 240° | |||
| Arm4 | Length | 6100mm | ||
| Angle | 180° | |||
| Arm5 | Length | 6100mm | ||
| Angle | 265° | |||
| Pumping System Specification | Slewing circle | ±360 º | ||
| Outrigger spread L-R (front) | 6200mm | |||
| Outrigger spread L-R (rear) | 7130mm | |||
| Output | Low pressure | 140 m 3 /h | ||
| High pressure | 100 m 3 /h) | |||
| Pressure | Low pressure | 8.3 Mpa | ||
| High pressure | 12Mpa | |||
| Max. strokes | Low pressure | 22 times/min | ||
| High pressure | 15.5 times/min | |||
| Delivery cylinder diameter | 260mm | |||
| Stroke length | 2000mm | |||
| Hydraulic system | Open loop | |||
| Hydraulic system oil pressure | 32 Mpa | |||
| oil tank capacity | 640L | |||
| Water tank capacity | 600 L | |||
| Pipeline size | 125mm | |||
| End hose length | 3m | |||
| End hose diameter | 125mm | |||
| Chassis specifications | Chassis model | ISUZU CYZ51Q | ||
| Engine type | 6WF1A | |||
| Engine power | 265kW | |||
| Capacity of fuel tank | Euro III | |||
| Displacement | 380 L | |||
| Max.speed | 80km/h | |||
| Brake distance | ≤10m/30km/h | |||
