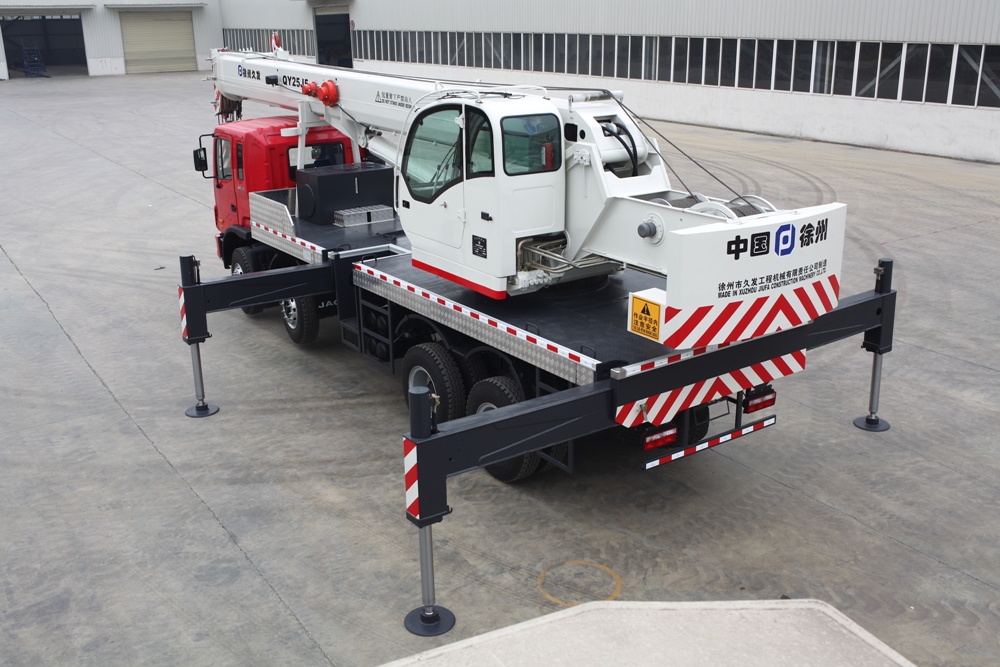

Truck crane QY25

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:-

Supply Capability:50 unit/month

Product Description:

Category

Item

Unit

Value

Outline Dimension

Parameters

Overall length

mm

12925

Overall width

mm

2500

Overall height

mm

3870

Axle base

1st  axle base

mm

1900

2nd  axle base

mm

3700

3rd  axle base

mm

1350

Tread

Front wheel (1st axle and 2nd  axle)

mm

2040

Rear wheel (3rd axle and 4th  axle)

mm

1860

Weight Parameters

Kerb weight

Total weight

kg

33255

Front 1st/  2nd axle weight

kg

6450/6450

Rear 3rd  and 4th axles weight

kg

20355

Dead weight in  travel state

Total weight

kg

33450

Front 1st/  2nd axle weight

kg

6500/6500

Rear 3rd  and 4th axles weight

kg

20450

Power Parameters

Engine model

YC6A240-33

Engine Max.  output power

KW/(r/min.)

177/2300

Engine Max.  torque/Max. toque rotation speed

N.m/(r/min.)

900/1300-1600

Engine rated  rotation speed

RPM

2300

Travel Parameters

Travel speed

Max. travel speed

Km/h

80

Min. stable  travel speed

Km/h

3-5

Turning radius

Min. turning  radius

m

22

Min. ground  clearance

mm

255

Approach angle

°

27

Departure angle

°

16

Braking distance  (at 30km/h)

m

≤10

Max. grade ability

%

25

Fuel consumption  per 100km

L

≈35
