Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:500000 watt
Supply Capability:5000000 watt/month

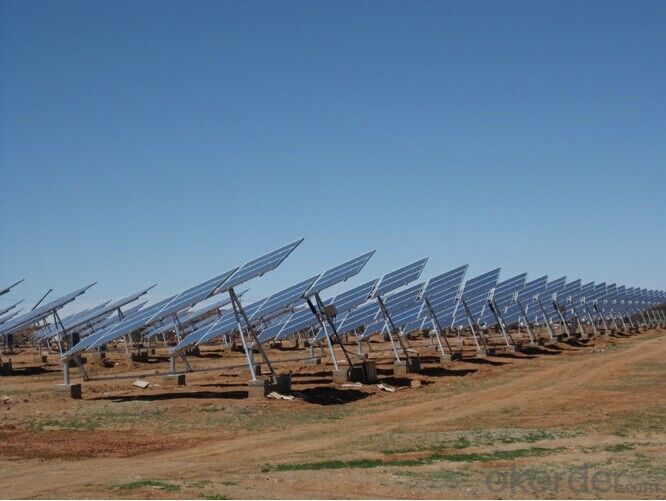

Triangle joint sloped axis tracking system for solar system
Triangle joint sloped axis tracking system ishigh-tech patented product.
Features:
1. adopt triangle bracket support and framestructure,light weight and easy installation.moving parts used polymer bearingwith self-lubrication and slewing drive with sealing,free of oil andmaintenance free and self-protection from wind and sand.
2. power generating can beincreased by 20-35%.the tracker braket adopt hot-dipped galvanized high-qualitystructural steel Q235B,stainless steel SUS304 and aluminum alloy.
3. working timemore than 25 years.
Specification:
•installed capacity | • 1KW—10KW |
•control method | •Light control •time control •light/time control |
•tracking accurancy | • ≤1° |
•Azimuth angle | • ±45° |
•working wind | • 50—70km/h |
•Max wind resistance | • 125—200km/h |
•Driven power | • DC24V/≤30W |
•Structural material | • Q 2 3 5 hot-dip galvanized steel |
•level of protection | • I P 6 5 |
•Quality guarantee | • 25Y/2Y |
•Operating •ambient temperature | • -35℃—65℃ |
•Area of net rack | • 10㎡—80㎡ |
•Unit weight | • 200kg——2000kg |
