Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:50 unit/month
TC6018 Description
Feature: Tower Crane
Condition: New
Application: Construction
Rated Loading Capacity: 4 ton
Rated Lifting Moment: 400 KN.m
Max. Lifting Load: 4 ton
Max. Lifting Height: 120 m
Span: 3-47 m
Place of Origin: Shandong, China (Mainland)
Brand Name: Meida
Model Number: TC6018 tower crane
Certification: CE, ISO, SGS, GOST
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
Material: Q235b
Electrical components: Schneider
section dimension: 1.5*1.5*2.2 m
Power: 26.7 Kw
Rated hoisting capacity max radius: 0.8 ton
Working environment temperature: -20 to +55
Free standing heigh: 29 m
Jib length: 47 m
Machinery weight: 19.5 ton
Color: yellow or optional
TC6018 Features
1.Thirteen years of experience in supplying new self-erecting tower crane with Huiyou Brand.
2. Export to more than 20 countries with CE/ISO/GOST Certificates.
3. Stationary/Travelling, external/ internal climbing tower crane
4. Impeller blasting/rust protection paint
5. Advanced painting process
6. Potain masts designed with dismountable panels, making teansport easier and cheaper.
7. New designed mast, can be used to Internal and external climbing tower crane
8. Famous brand mechanism system, Schneider Electronic control system, jiangte and jiuhe motor
9. Engineers available to service machinery overseas.
TC6018 Specification

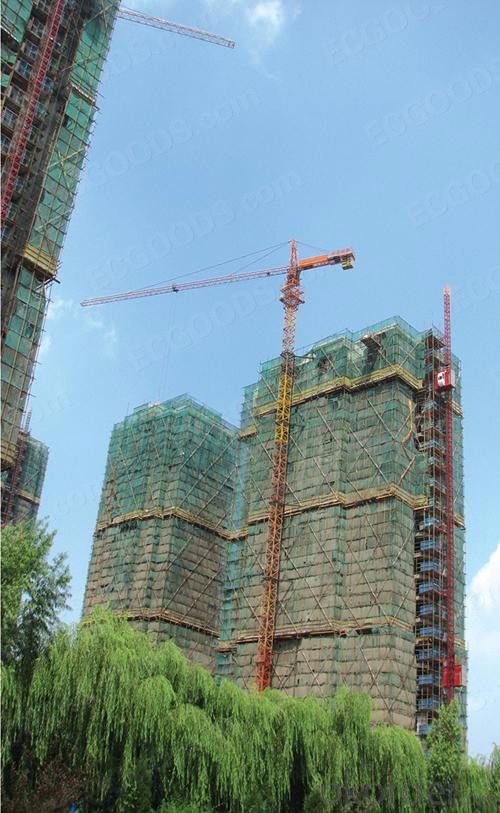

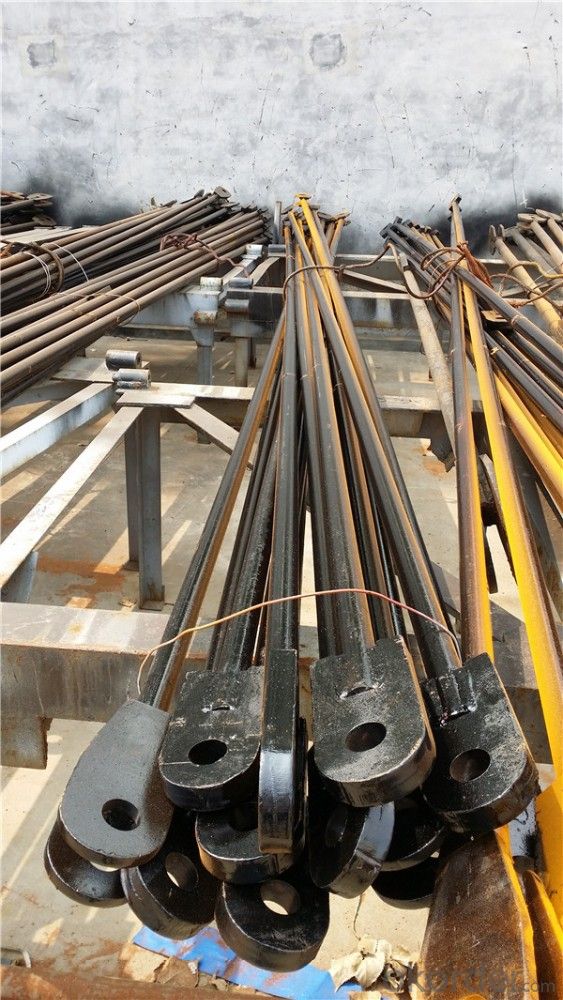

TC6018 Pictures
TC6018 FAQ
Q: What is tower crane?
A: Tower crane is a modern form of balance crane that consist of the same basic parts. Fixed to the ground on a concrete foundation (and sometimes attached to the sides of structures as well), tower cranes often give the best combination of height and lifting capacity and are used in the construction site.
Q: What is 3 main mechanism of the tower crane?
A: there are trolleying mechanism/ slewing mechanism/ hoisting mechanism.
Q: Can you equip with light on tower crane jib, monitor, remote control and anemometer?
A: Sure. All of these could be provided with extra cost upon the clients’ requirements. But according to general practice, remote control is not suggested because most of the operator feedback operation in the cabin will provide a wide working view.
