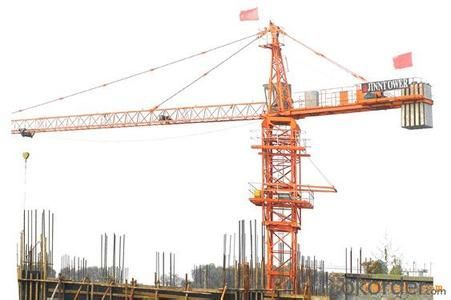

Tower Crane CMAX TC5516 Construction Machiney

Product Description:

Introduction:

Tower Crane is a machinery used for vertical lifting and horizontal delivering of building materials and any other heavy items during construction process. It can lift and lay down, horizontally shift, and rotate, so the working range is very large. The whole body can be fixed or movable.

Features:

1. Designed by fully utilizing the combinational design technology and the finite element analysis technology and taking the tower crane microcomputer design platform as a tool.
2. The crane is a horizontal-arm-rest trolley-amplitude upper-revolution hydraulic lifting type crane which has the maximum working amplitude of 56m, the independent lifting height of 40m, the adhesion lifting height of 150m, the maximum lifting moment of 853.2kN*m. All the performance parameters meet or exceed national standards.
3. The lifting boom and balance boom adopt cantilever boom structure, which reduces the hoisting modular and makes it more safe, convenient and flexible to install and uninstall.
4. Multiple special mounting brackets are available, which saves the installation time and ensures safe and quality installation.
5. The lifting boom adopts cantilever boom structure and variable cross-section materials, featuring more reasonable structural stress and long service life; and it is easier to make different combination of boom length.

Specifications:
