Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:1 unit
Supply Capability:30 unit/month
Brief Description:

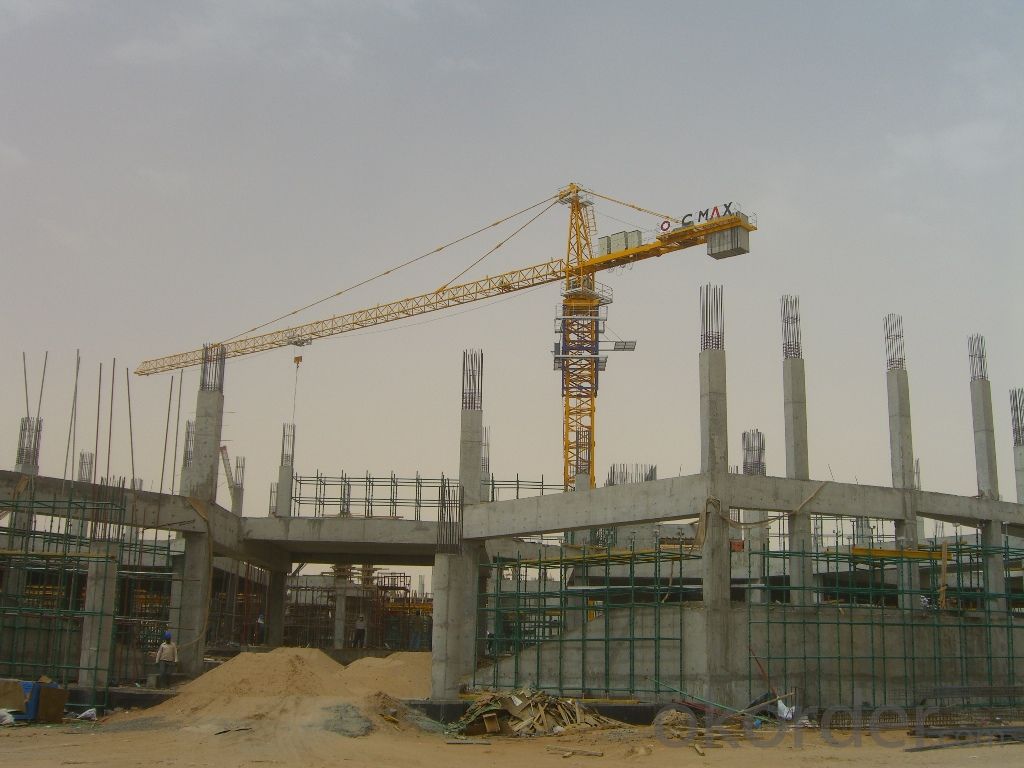

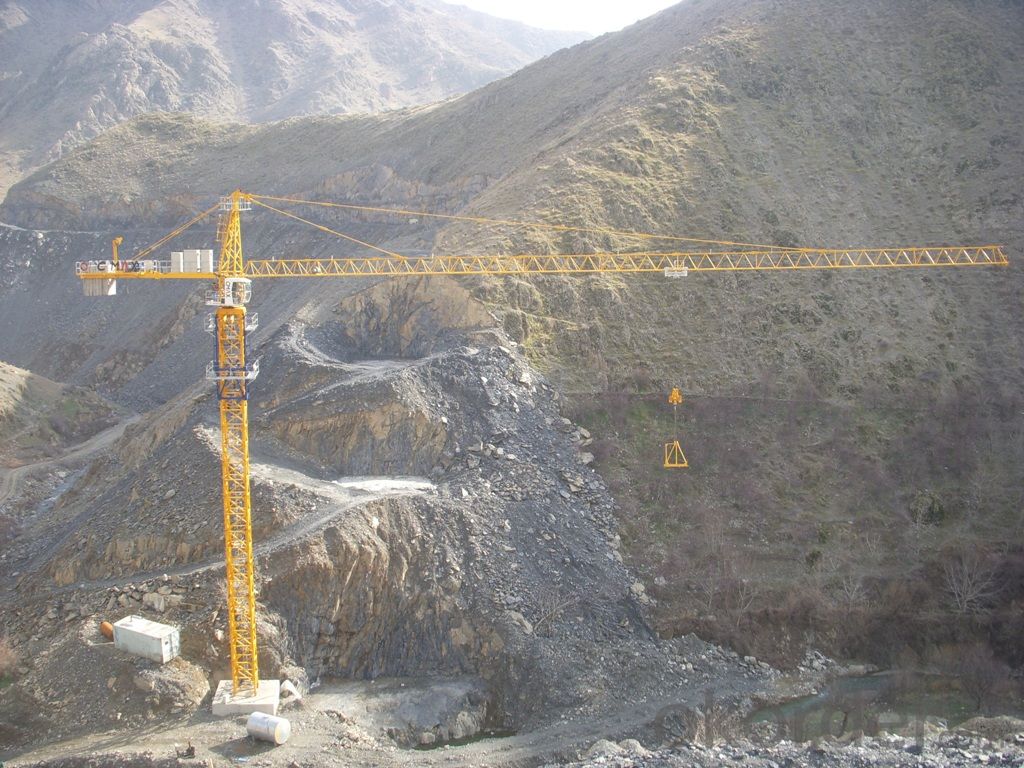

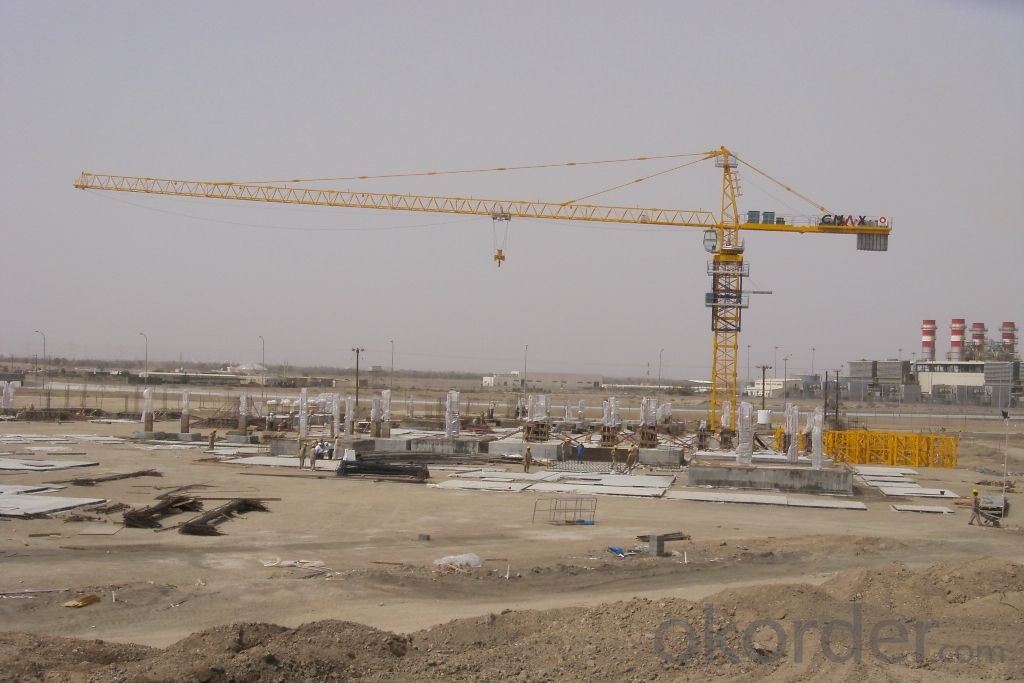

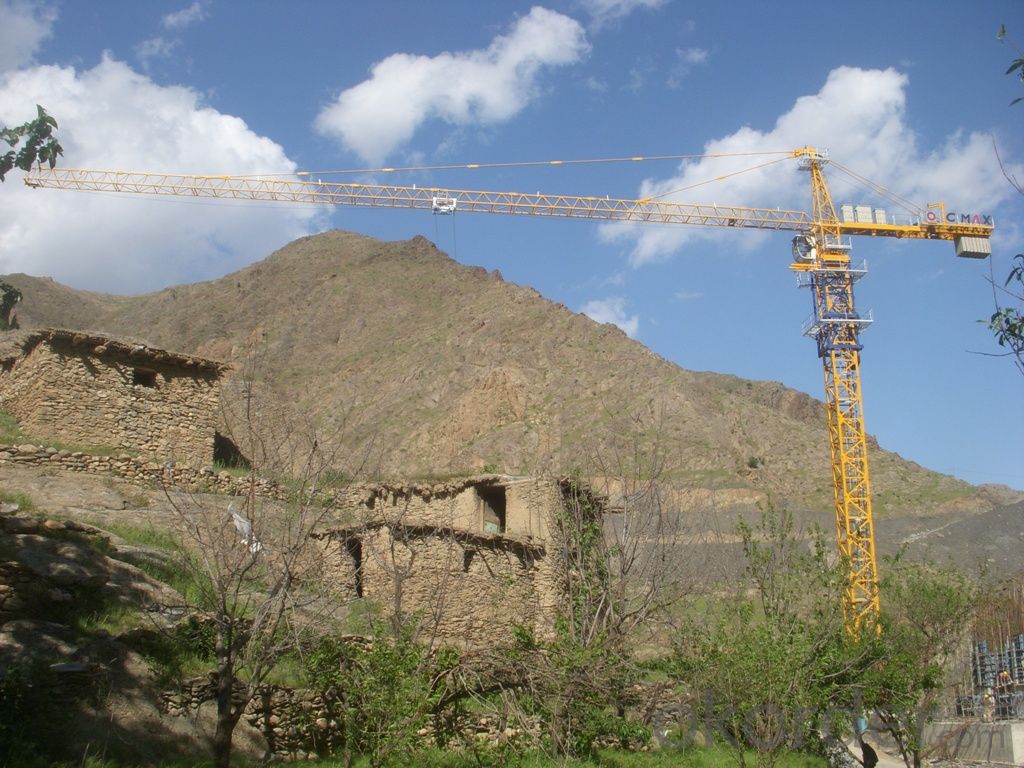

1. TC6520(QTZ160) have competitive price and excellent quality, suitable for all kinds of construction project and can work under all kinds of work condition. With their working radius from 2.5 to 65m, TC6520(QTZ160) tower cranes are famous for their large operating ranges, varied working methods and wide uses.
2. This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.
3. It is original in design, reliable in operation and satisfactory in shape.
4. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency.
5. Slewing mechanism and trolleying mechanism all take VFD+PLC technical control.
6. Outstanding in working efficiency, operating speed and stability. Reduce future maintenance cost.
7. With scientific layout and beautiful appearance.
8.They are widely applied for the construction of high-rise hotels, resident buildings, high-rise industrial buildings, large-span factory buildings and tower like buildings like tall chimneys.
9.After sales service will be offered which will get rid of all your worries in the purchase of our product
Features:
| Item | Parameter | ||||
| Independent height (m) | 50 | ||||
| Max height with attachment (m) | 200 | ||||
| Working range can be adjusted(m) | 55/60/65 | ||||
| Min working range(m) | 2.5 | ||||
| Max lifting capacity(t) | 10 | ||||
| Tip load @ 65m(t) | 2 | ||||
| Hoist mechanism (VFD+PLC) | Falls | 2 | 4 | ||
| Lifting capacity(t) | 0-2.5 | 0-5 | 0-5 | 0-10 | |
| Speed(m/min) | 0-80 | 0-40 | 0-40 | 0-20 | |
| Motor | YZPBF250M1-6-45KW | ||||
| Trolleying mechanism (VFD+PLC) | Speed(m/min) | 0-56 | |||
| Motor | YZPBE132S-4-5.5KW | ||||
| Slewing mechanism (VFD+PLC) | Speed(r/min) | 0-0.6 | |||
| Motor | YTW112M-4-5.5KW×2 | ||||
| Climbing speed(m/min) | 0.5 | ||||
| Counterweight(t) | 21.3 | ||||
| Mast section size(L×W×H)mm | 2000×2000×3000 | ||||
| Working temperature | -40-+60°C | ||||
| Max working wind(m/s) | 20 | ||||
| Total power(KW) | 63 | ||||
| Rated working voltage & current | 380V/121A | ||||
Loading Diagram:
FAQ:
Q: What kinds of tower crane are available now?
A: Four main categories: normal tower crane with cat head, internal climbing tower crane , top less tower crane and luffing tower crane.
Q: What kind of steel used for tower crane ?
A: Normally, as for the main force bearing steel structure, Q345B is adopted; as for the assistance force bearing steel structure Q235B is adopted. All of the raw material is outsourced from qualified steel factory in China.
Q: What about our tower crane warranty?
A: Usually there is one-year quality warranty including main electronic parts (not including consumable parts). There are consumable spare parts together with whole machine and normally they are enough for one year.
Q: What is 3 main mechanism of the tower crane ?
A: there are trolleying mechanism/ slewing mechanism/ hoisting mechanism.
Q: Can you equip with light on tower crane jib, monitor, remote control and anemometer?
A: Sure. All of these could be provided with extra cost upon the clients' requirements. But according to general practice, remote control is not suggested because most of the operator feedback operation in the cabin will provide a wide working view.
