Top grade Outdoor Waterproof 50w LED Flood Light

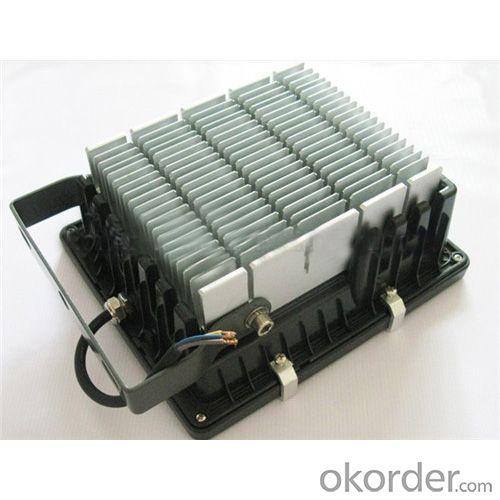

1.back aluminum heatsink ,with heatpipe better heatsink
2.tempering glass cover , transmittance over 93%
3.waterproof design ip65
4.with casette strucure ,it is easy install
About led driver:
1.Meanwell or CN driver
2.Waterproof ip66
3.constant current driver
4.optional dimmable
About led chip:
Bridgelux 50W high power led chips 20V
1.4000-5000lm.
2.Bridgelux and Epistar 50W
3.Current:1750mA
4.3yrs warranty
Outdoor Waterproof 50w LED Flood Light specifications :
1 | Model No | HZ-F-005 50W |
2 | Material | Aluminum alloys body+tempered glass |
3 | Power | 50W |
4 | Voltage(V) | AC100-240V/50-60Hz |
5 | Power factor | >0.9 |
6 | Size | 225x195x95 |
7 | Light source brand | Epistar /Bridgelux/Cree |
8 | Color Temperature | 2800-6500K |
10 | Finished Luminance(LM) | 4080~4560LM |
11 | Light Color | White/warm white |
12 | Woking Temperature | -20°C~45°C |
13 | LED Q'ty | 1 PC / 24PCS |
14 | International Protection | IP65 |
15 | Lense style | Transparent |
16 | Color Rendering Index | CW≥70Ra , WW≥65Ra |
17 | Beam Angle | 120° |
18 | Warranty | 3 years |
19 | Packing Size | 310x260x140mm |
Packing of led flood light :
LED FLOODLIGHT 50w
QTY:6PCS/CTN
G.W:16.3KGS
SIZE :54X41X36CM
Features of led flood light :
1. Long life: Lifetimes can exceed 50, 000 hours, as compared to 1, 000 hours for tungsten bulbs
2. Energy efficiency: Up to 90% less energy used translates into smaller power supply required
3. Non-toxicity: No mercury
4. Cool: Less heat radiation than HID or incandescent
5. Versatility: Available in a variety of colors
6. Aluminum housing
7. Luminous efficiency is up to 100lm/W
8. Various kinds of color temperature optional
9. High color-render index
10. Milky white lamp-shade, soft light, which reduce damage to our eyes
11. Novel style and sophisticated appearance
12. Unique thermal design and low temperature, extending the life of LED
Installation of led flood light :
This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces.
Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights. Do not kinkcables. Output cables should be laid separately and at a distance from other cables.
Proceed by connecting the wiring cables to the luminaries. Usually, the brown(or black) wire is the live wire, connect it with the terminal marked l. The blue wire is naughty wire, connect it with the terminal marked n.
Do not remove the name plate of the power supply and driver of the light.
Notes:
Nonprofessionals are not allowed to disassemble and maintain the products. We have the right not to
Provide aftersale service if unauthorized disassembly and maintenance happens to the products.
Applications of LED flood light
1. Tunnel, Subway, Underground;
2. Gym, Sports Stadium;
3. Building, Billboard;
4. Gas Station, Garage;
5. Park, Garden;
6. Workshop, Factoy;
7. Warehouse, Storage;
8. Yard, Square;
9. Road, Highway;
10. Station, Dock, Deck, Ship, Boat;
11. Aquarium etc.
