Tire trolley 900T

Product Description:

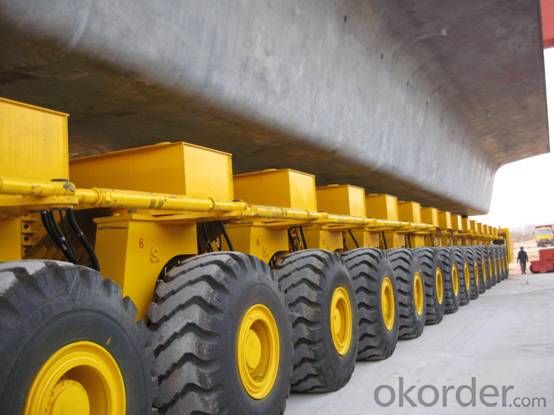

900ttire trolley, meets with the demands of high speed railway bridge girdermachine in transporting entire box-girder ,feeding girder and carryinglaunching girder to transfer the yard, making the transporting girder vehicletechnology towards a higher level. We use the tire running technology and thehydraulic drives the whole machine moving, steering, lifting and declining. Itcan realize a variety of traveling mode such as straight moving, oblique movingand splitting steering.

According to different steering ways, there are independent steeringtire trolley and steering linkage tire trolley.

According to different haulage heights, there are common tiretrolley and low tire trolley (Height of which meets the requirement of passingthe tunnel with the entire box girder).

Performance and parameters：

Entire machine travel mode: wheel-tire

Rated loading capacity: 900t

Height: Common transporting girder vehicle : 2.75±0.35m，

Lowtransporting girder vehicle: 2.25±0.35m。

Lifting height (from the ground to the top of box beam): 35m

Minimum turning radius: 30m

Travel speed : Full-load ( step less speed regulating) 0～5Km/h，

No-load (step less speed regulating) 0～10Km/h

Max. Grade ability with full load: Longitudinal ≥5%; Lateral(slope) ≥4%
