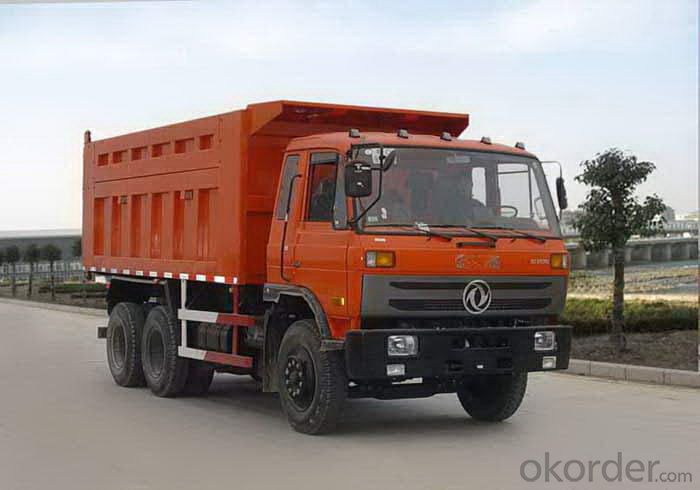

Tipper Dump Truck 6X4 340HP with Mercedes Technology

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 PCS

Supply Capability:1500 PCS/month

Product Description:

 Tipper Dump Truck 6X4 340HP with Mercedes  Technology

Product Details

Basic Info.

Model NO.:NG80B



Transmission Type:Manual

Power:Diesel



Load Capacity:31-40t

Emission Standard:Euro 3



Drive Wheel:6×4

Engine Capacity:>8L



Seats:≤5

Horsepower:251-350hp



Tire Type:Inner Tube

Tire Certification:ECE



Tire Design:Radial

Dumping Type:Front Lifting Style



Condition:New

Tipping Systerm:Holland Hova Hydraulic System



Body:Strong Dump Body

Technology:Based on Mercedes Benz Truck From Germany



Export Markets:Global

Additional Info.

Trademark:Beiben/NORTH BENZ



Packing:Nude Packing

Standard:ISO9001



Origin:China Mainland

HS Code:870423009



Production Capacity:10, 000units/Year

Product Description

Drive type:                         6x4

Driving type:                     RHD/LHD

Wheelbase:                       4450mm+1450mm

Engine:                              340hp, Euro III


Features & Benefits:
Beiben truck features and advantages:
1: Driving room: the steel structure, high safety, lower wind resistance coefficient
2: Power system dynamic matching technology of Mercedes-Benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high intensity
4: Benz axle: Double Deceleration Bridge, high efficiency, carrying large
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system: high safe and reliable, and flexible
7: Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance.


Specifications:

BEIBEN 6x4 Dump Truck
Traction type6x4
Driving typeRHD/LHD
CabinMercedes Benz(NG80B), with A/C
Engine brandWeichai
Engine model340HP
Engine typeWater-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled
Displacement9.726 liters
Max. output320hp@2,200rpm
Max torque1,250NM@1,400-1,600rpm
Bore/Stroke(mm)126/130
Gear boxFAST 12JS160T (12 forward speeds + 2 reverse speeds)
Clutch430 Spring type
SteeringZJ120D
Tyre12.00R20
Spring10/13
Max. speed (km/h)90
Front axleMercedes-benz Axle,  7.5tons
Rear axleMercedes-benz Axle, double differential reduction, 13tons
Curb weight12,200kg
Total Mass25,000kg
Wheel base (mm)3,800+1,450
Front track (mm)1,995
Rear track (mm)1,800/1800
Approach angle26 degree
Departure angle32 degree
Dimension (mm)9,000x2,500x3,400
