Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:20 Tons~25 Tons m.t.
Supply Capability:40000 MT Per Month m.t./month
General information of Tinplate For Coffee And Tea Can
|
Steel Type |
MR |
|
Temper (BA&CA) |
T1~T5, DR8 |
|
Coating |
2.8~8.4g/m2 |
|
Thickness & Tolerance |
0.15~0.5mm (Tolerance:±0.01mm) |
|
Width & Tolerance |
600~1000 mm(Tolerance: +2/-0mm) |
|
I.D |
508 MM |
|
Coil Weight |
3~10 MT |
|
Passivation |
311 |
|
Oiling |
DOS |
|
Surface Finish |
Bright ,Stone ,Silver ,Matte |
|
Min Order |
25 Tons for 1 20 feet FCL |
|

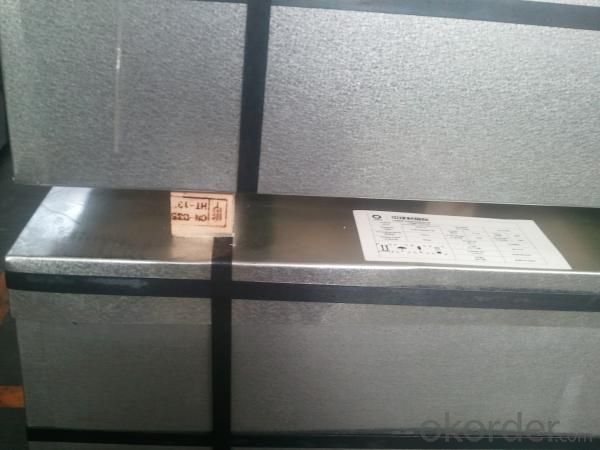

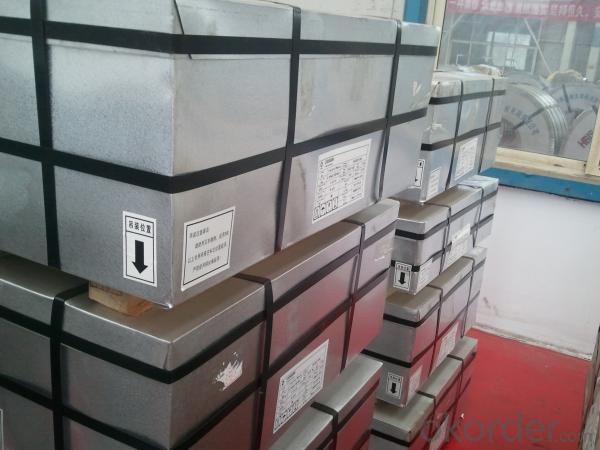

Package |
Seaworthy Export Standard Wooden Pallet |
|
Standard Available |
GB/T2520-2000, JIS G3303, ASTM A623, BS EN10202 |
|
Lead Time |
35 days after receiving buyer's original L/C or Prepayment |
|
Special specifications are available on customers' requirements. | |
Technical data of Tinplate For Coffee And Tea Can
|
Chemical Composition(%) |
Mechanical Property |
|
C：0.02~0.04 |
Yield Strength: (Mpa)：280~320 |
|
Si：0.01~0.03 |
TensileStrength: (Mpa)：340~390 |
|
Mn：0.18~0.22 |
Elongation：20%~30% |
|
P：0.014~0.016 |
------------- |
|
S：0.006~0.009 |
Application of Tinplate For Coffee And Tea Can
Tinplate is widely used for making all types of containers such as artistic cans, tea cans, painting cans,
chemical package cans and metal printing etc. Its applications are not limited to containers; recently,
tinplate has also been used for making electrical machinery parts and many other products.
Equipment and Facility
Tin Coating Line
Cold Rolling Mill Batch Annealing Furnaces
Cutting Line Stock Area
Quality Control System
