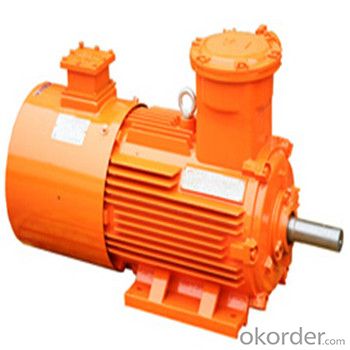

Three Phase Rotor and Stator AC Motor in Shanghai

Product Description:

Model: YE3 80 ~ 355

Installation: B3, B5, B35, V1
frame  Type: totally enclosed fan cooled
Structure: Three-phase asynchronous motors

pressors, conveyor belts and other general-purpose machinery and equipment

Specifications:
YE3 series of ultra-efficient motors
IEC Standard
Cooling method IC411, protection class IP55, F class insulation, Class B temperature rise.
Efficiency rating: IE3, efficient detection method based IEC60034-2-1, 2007 execution.
Australia AS / NZS 1359.5: 2004, HEFF-B, Test Method B
NEMA ultra-efficient level

Frame size: 80mm to 355mm.

2, 4, 6-pole optional
Rated power: 0.75kw ~ 315kw, S1 duty.
Rated voltage: 220 / 380V, 380 / 660V, 230 / 400V, 400 / 690V.
Rated frequency: 50 / 60Hz.
Ambient temperature: -15 ℃ ~ 40 ℃.
Bearing Brand: SKF / C & U
Wiring: 0.75-3kw use star connection, 4-315kw use delta connection

Other Optional Specifications:

1 Heat protection: windings and / or bearings installed PTC, PT100.
2 with tropical moisture.
3 Drive: may need to use roller bearings, angular contact bearings, insulated bearings.
4 Special Paint: provide the corresponding special paint process for the high humidity, high temperature and highly corrosive environments.
5 junction box: from the drive end direction, can be installed on motor top, left and right.
6 cable gland material can be used: plastic, metal. May provide extended the lead.
7 optional protection class: IP65.
8 Enhanced Power Factor: 1.0, 1.15, 1.25.
9 closed fanless cooling solution since: IC410.
10. H-class insulation and high temperature environments.
