Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1000 m²
Supply Capability:50000 m²/month

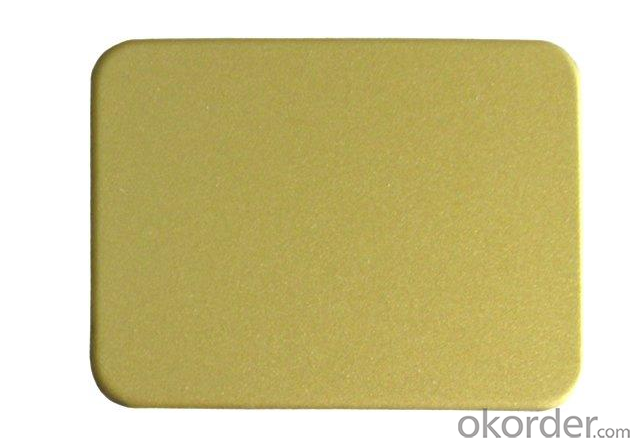

The fireproofing aluminium plastic composite panel is a kind of new composite material skinned with coated aluminium alloy sheets and cored with non-combustible mineral. It has excellent fire resistance compared to normal aluminium composite panel. It conforms to China's national standard GB8624, Grade B1, equivalent to Germany standard DIN4102, Grade A2. It is a kind of environmentally friendly building material that offers excellent fire resistance and minimal gas generation when burnt. It has been granted the China's National Patent ( No. 99258967.3 ).
Specifications
The testing result of the Fangda fireproofing aluminium plastic composite panel are shown in the following table.
| No | Item | Testing method Demand Result |
| 1 | Minimum remaining length Of combustion.mm | GB/T8625-88 ＞0 486 |
| 2 | Average remaining length Of combustion.mm | GB/T8625-88 ＞150 513 |
| 3 | Smoke temperature, ℃ | GB/T8625-88 ＜200 78 |
| 4 | Height of fire tip.mm | GB/T8626-88 ＜150 10 |
| 5 | Grade of smoke density | GB/T8627-88 ＜75 9 |
Testing conclusion | All indexes of the material tested are conformed to the requirement specified for the material difficult to combust. The material tested is adjudged as grade B1 according to GB/T8624 |
The physical properties and mechanical properties
The testing results of the physical properties and mechanical propertities of the Fangda fireproofing aluminium plastic composite panel are shown in the following table.
| No. | Item | Testing standard | Demand | Result |
| 1 | Bending strength | GB/T11718-89 | ≥100MPa | 119MPa |
| 2 | Bending modulus of elasticity | GB/T11718-89 | ≥2.0x104MPa | 3.48X104MPa |
| 3 | Penetrating force of resistance | ASTMD732-93 | ≥9.0KN | 9.9KN |
| 4 | Shear strength | ASTMD732-93 | ≥28.0MPa | 32.8MPa |
| 5 | Peel-off strength | GB/T2790-93 | ≥7.0N/mm | 11.4N/mm |
| 6 | Temperature difference resistance | GB/T17748-99 | -40℃~80℃,20times repetition, no change | No change |
| 7 | Thermal expansion coefficient | GB/T17748-99 | ≤4.0x10-5℃-1 | 1.6X10-5℃-1 |
| 8 | Temperature for thermal deformation | GB1634-79 | ≥105℃ | 112℃ |
Surface Coatings
The Fangda fireproofing aluminium plastic composite panels are coated with PVDF resin containing more than 70% of KYNAR 500, and have an excellent outdoor weathering quality. They may also be coated with polyester or acrylic painting for indoor use. The colors are available of standard or upon the requirement of the customers.
Specifications
Standard size: length: 2440mm, width: 1220mm, thickness: 4mm or 3mm
Other sizes are available upon the customers' requirements
Application
Fangda panels can be used as curtain walls, interior decorations, display units, signboards and partitioning for exhibition stands, shop fittings, vehicle bodies, furniture, spandrel panels, ceilings.
