Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:1000 unit/month

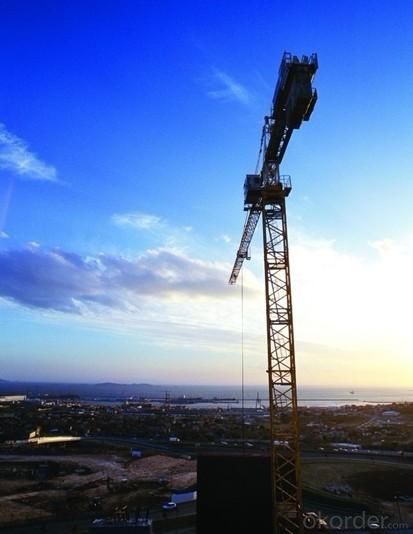

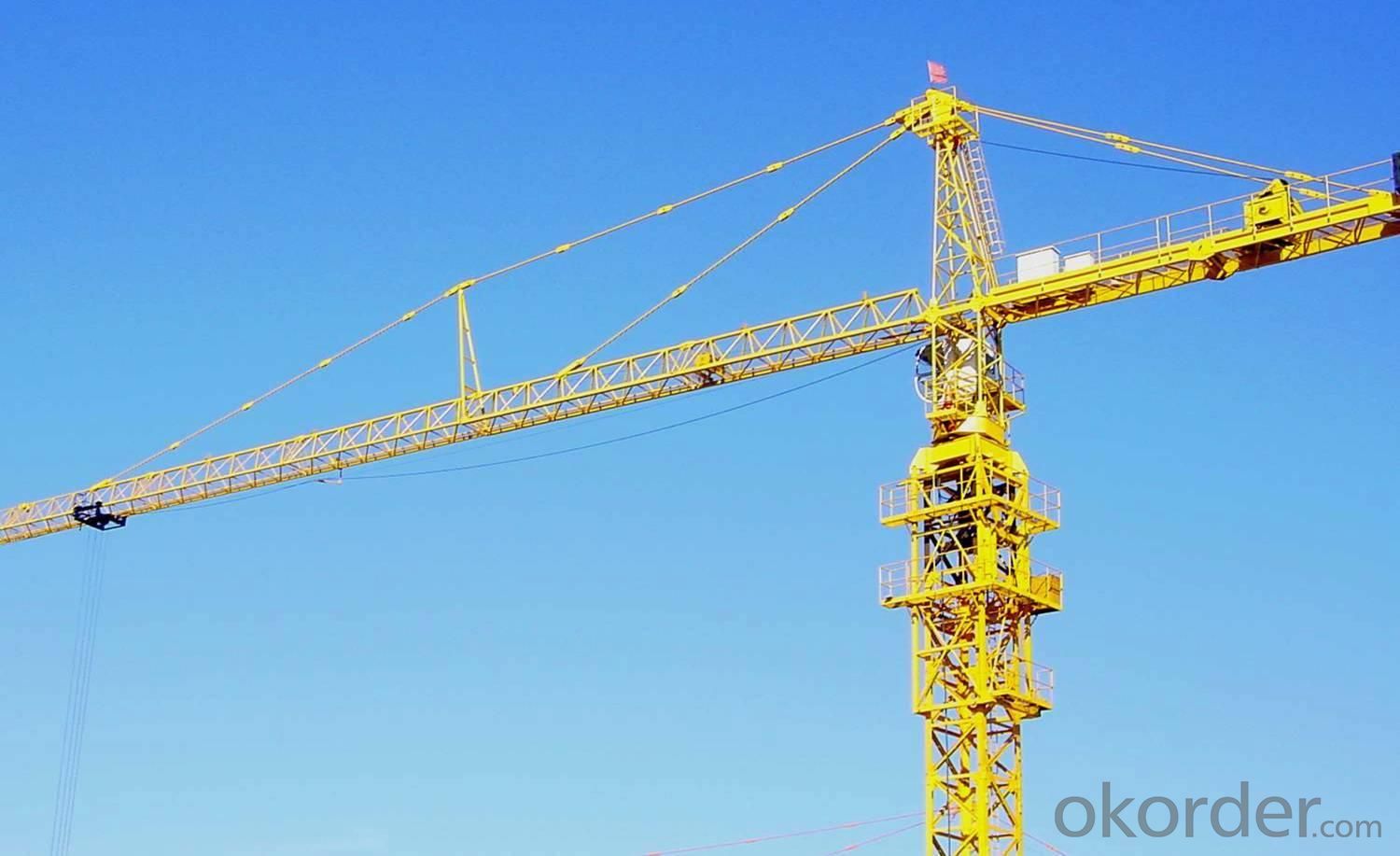

TC7035B - 16 Tower Crane Tower Crane
| Packaging Details: | 40HC containers Motor and components use steel or plywood box |
| Delivery Detail: | 15-20 days after receiving the advanced money |
Main Technical Parameters
Name | Unit | Parameters | |||
Nominal lifting moment | KN.m | 630 | |||
Max. lifting power | t | 6 | |||
Rating lifting power at max. range | t | 1.3 | |||
Work range | m | 2-50 | |||
Lifting height | Independent | m | 40 | ||
Attaching style | m | 140 | |||
Lifting speed | m | Double magnification | Quadruple magnification | ||
60/30/6 | 30/15/3 | ||||
Circumgyrating speed | r/min | 0-0.6 | |||
Range adjusting speed | m/min | 44/00 | |||
Top lifting speed | m/min | 0.5 | |||
Tower machine weight | Structure weight (independent style) | t | 30.3 | ||
Counterweight | t | 12 | |||
Complete machine weight (independent style) | t | 42.3 | |||
Max. circumgyrating radius | m | 51.25 | |||
Circumgyrating radius of tail | m | 12.06 | |||
Max. wind speed at work | m/s | 20 | |||
Wind speed at top lifting (not more than) | m/s | 13 | |||
Environment temp. at work | °C | -20--+40 | |||
Name | Parameters | ||
Lifting structure | Motor | Model | YZTD250M3-4/8/32 |
Power | 24/24/5.4 | ||
Rotate speed | 1420/700/140r/min | ||
Arrester | Model | YWZ5-315/30 | |
Arresting moment | 630N.m | ||
Hydraulic driving unit | YT1-90Z/6 | ||
Decelerator | Model | JZQ500 | |
Center distance | 500 | ||
Reduction rate | I=12.64 | ||
Steel cable | 12NAT6X19 +NF1670ZS 93.14 | ||
Circumgyrating structure | Motor | Model | 2-YD132S-4/8 |
Power | 2-3.3/2.2KW | ||
Rotate speed | 1440/710 | ||
Decelerator | Model | XX4-80-195 | |
Reduction rate | 195 | ||
Arrester | DJZ-40 | ||
Hydraulic coupler | YOX250A input φ38 output φ32 | ||
Circumgyrating support | HSW.35.1250 | ||
Range adjusting structure |
Motor | Model | YDEJ132S-4/8 |
Power | 3.3/2.2KW | ||
Rotate speed | 1380/710 | ||
Decelerator | Model | BB45A | |
Reduction rate | I=36.13 | ||
Steel cable
| 8NAT6X19W+NF1570ZS 33.77 | ||
Top lifting structure | Motor | Model | Y132S-4 B5 |
Power | 5.5KW | ||
Rotate speed | 1440r/min | ||
Decelerator | Model | HSGK-160/110 | |
Piston journey | 1300 | ||
Hydraulic pump station | Work pressure 20Mpa, max. pressure 25MPa | ||
