Taiwan Epistar Chip With 3.03.6 Volt 0.5W 2835 SMD LED

Loading Port:Shenzhen

Payment Terms:L/C,T/T

Min Order Qty:10000 Pcs bag

Supply Capability:100000 Pcs Per Month bag/month

‍General Introduction

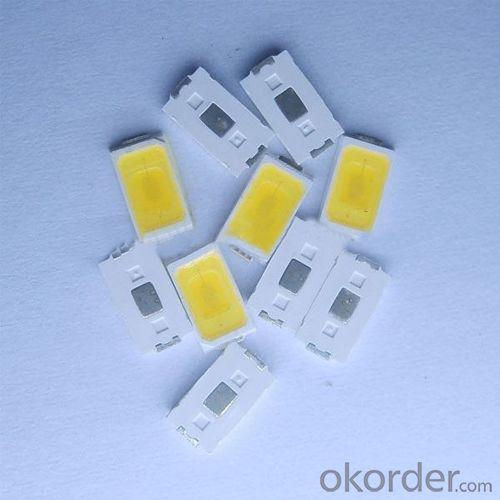

epista chip with 3.0-3.6 volt 0.5w 2835 smd led

Description

Item	Spec
Commedity	epista chip with 3.0-3.6 volt 0.5w 2835 smd led
Part No.	S2835MW
Color	warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want
Chip brand	Bridgelux; Epistar
Lumens	45-50lm
Power	0.5watt
Current	90mA
Voltage	3.0-3.6v
CRI	>70 >75 >80
CCT range	2800-3200k (warm white) 4000-5000k (Natural white) 5000-6500k (Pure white) >7000k (Cool white)
Working temperature	-20 °C-+40 °C
Super long lifetime	50,000 H
Max Junction Temperature	150°C
Certification	CE, Rohs
Lowest thermal resistance	8°C/W
Warranty	2 years
Place of Orign	shenzhen China
Feature	Anti UV
Design	Superexcellent heat conduct design

Attentions

1. Over-current-proof

Customer must apply resistors for protection; otherwise slight voltage shift will cause big current

change (Burn out will happen).

2. Storage

2.1 It is recommended to store the products in the following conditions

Humidity: 60% R.H. Max.

Temperature: 5°C~30°C(41°F~86°F)

2.2 Shelf life in sealed bag: 12 month at <5°C~30°C and <30% R.H. after the package is opened,

the products should be used within 24hr s or they should be kept stored at <20% R.H. with zip-lock sealed.

3. Vision Advisory Claim

Users should be cautioned not to stare at the light of this LED product. The bright light can damage the eye.

Our Services

1. We have a special R&D center team, which can solve any problems for clients.

2. After sale service can help customers to dealing with any situations after sale.

3. Test all the products before packaging.

4. Two years gurantee time.

5. We also produce all kinds of indoor and outdoor lights.

Quality control

Before the order confirmed finally,we would strictly check the material,color,dimension of the sample step by step

We salesman,also as an order follower,would trace every phase of production from the beginning

We have a QC team,every product would be checked by them before packed

We would try our best to help clients solve problems when they occurred.

Delivery:

1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.

2. "Business days" means Monday-Friday, excluding holidays.

3. DHL and UPS cannot ship to military or P.O. boxes address.

4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
