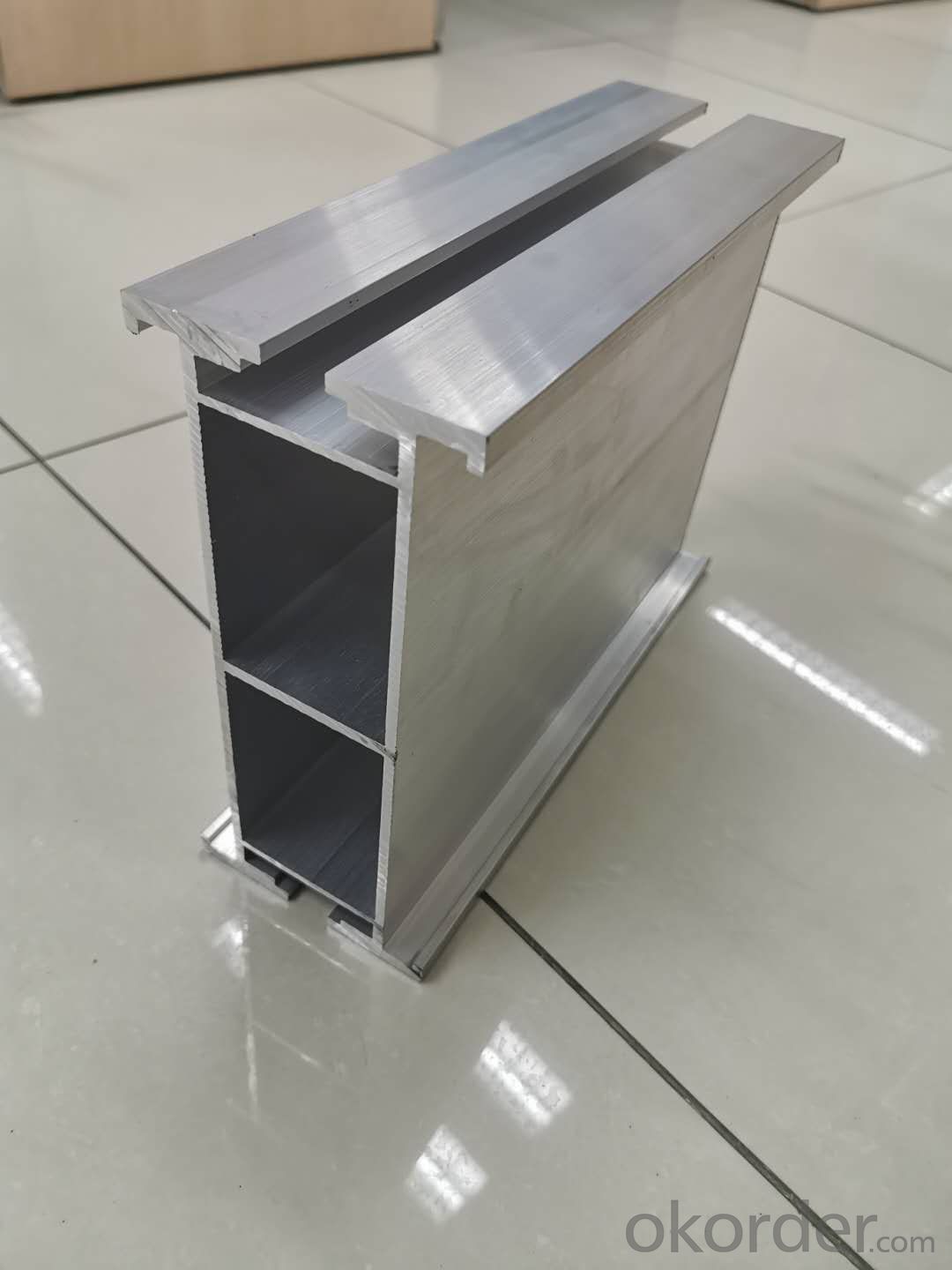

T225 Aluminum Beam
Aluminium Beams are a proven safe long term investment, when planning your formwork options. These high quality and fully technically compliant beams can provide a robust solution for your typical horizontal elements, such as floor slab and beams. The same equipment beams provided with our engineering drawings and calculations will also perform for all vertical elements such as walls or columns.
.
Code No. | Length (m) | Weight (kg) |
C412 | 1.20 | 10.70 |
C418 | 1.80 | 16.06 |
C424 | 2.40 | 21.41 |
C430 | 3.00 | 26.76 |
C436 | 3.60 | 32.11 |
C442 | 4.20 | 37.46 |
C448 | 4.80 | 42.82 |
C454 | 5.40 | 48.17 |
C460 | 6.00 | 53.52 |
C472 | 7.20 | 64.22 |
Properties | |
Area | 32.90cm2 |
Weight | 8.92kg/m |
Young’s modulus | 68900N/mm2 |
Section modulus Zxx | 204.5cm3 |
Inertia xx | 2301cm4 |
Inertia yy | 329cm4 |
Moment of resistance | 29.25kNm |
