Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:10000m2 m²/month

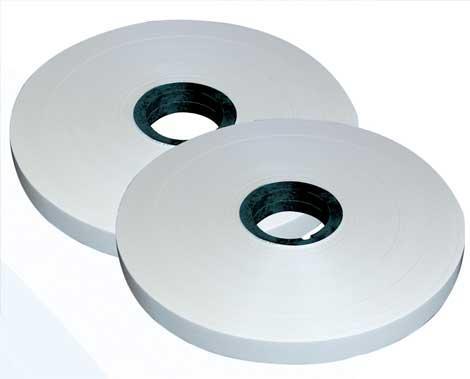

Application:Apply to fire-resistant cable and high temperature-resistant cable | |||
Technical Properties: | |||
Property | Unit | Single side synthetic mica tape NHH-S Tape | Double sides synthetic mica tape NHH-D |
Thickness | mm | 0.14±0.02 | 0.14±0.02 |
Unit weight | g/m2 | 185±10 | 210±10 |
Tensile strength | N/cm | ≥50 | ≥70 |
Fire-resistant wire&cable application range GB/T12666.6-90(ICE331) | Class B | Exposed to temperature of 1000±50℃ and voltage of 1.0KV for 90 minutes. Insulation resistance shall at least 1.0mΩ | |
Dielectric strength | KV/mm | ≥10 | ≥10 |
Mica content | % | ≥60 | ≥60 |
Insulation resistance | M·Ω | ≥1.0 | ≥1.0 |
