Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:50 m.t.
Supply Capability:1000 m.t./month

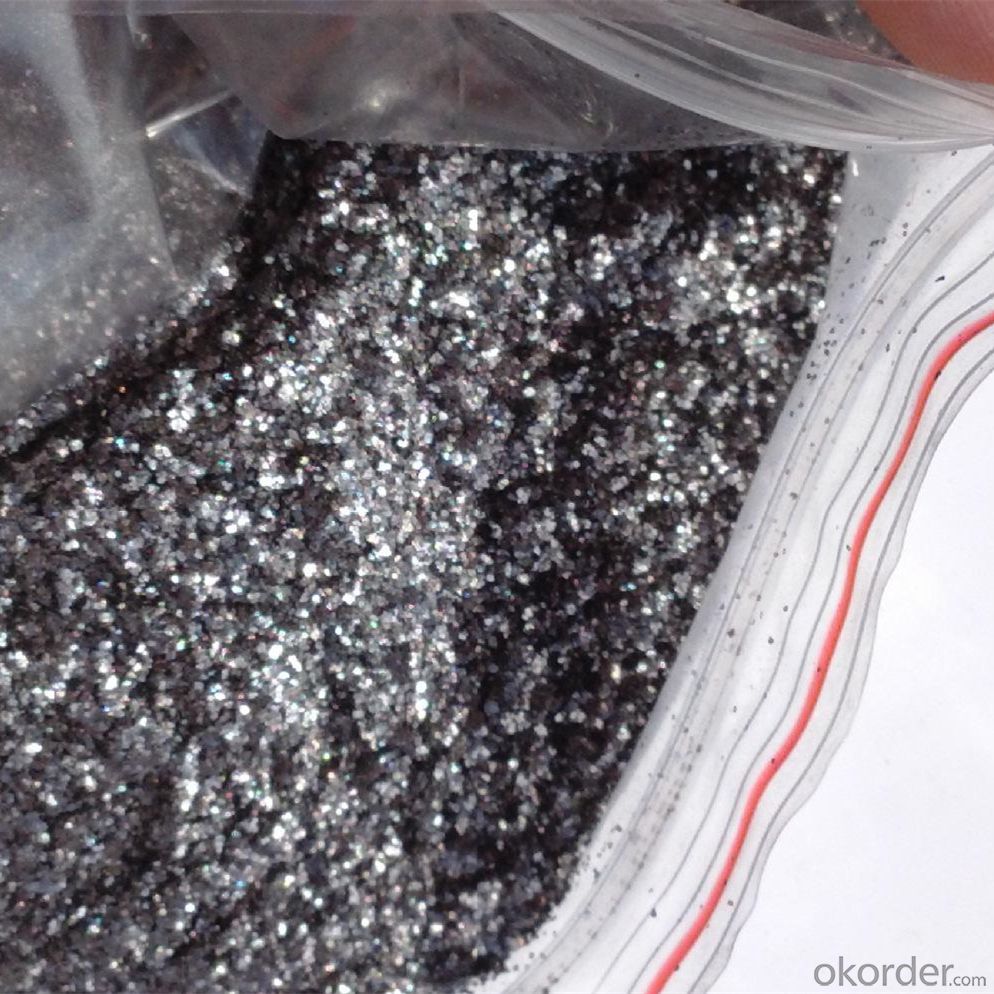

Natural Flakes Graphite Series
Advantage:
Perfect crystallization, great size in flake, high density, low content of mica, high luminance, excellent physical properties, such as resistance to high temperature, electric and thermal conductivity, self lubricity, and superior chemical stability
Property:
oxidation resistance and self-lubrication function under the high temperature condition,can also increase the strength(hardness)of original piece.
Size:
Adjustable to meet customer requirements, and major sizes include 50, 80,100, 120,150,200,325 mesh
Packing:
Provide various packing options according to customer requirements. Including Woven Bags, Paper Bags and Plastic Bags of 25KG, 50 KG, and 1000KG.
| Type | Graphite/AGP-818 natural graphite | |
| Term | Standard | |
| Granularity | D10(μm) | 10-13 |
| D50(μm) | 18-20 | |
| D90(μm) | 28-32 | |
| Tap Density (g/cm3) | 1.10~1.20 | |
| Pressed Density(g/cm3) | 1.60-1.65 | |
| Specific Surface Area (/g) | 2.5~3.5 | |
| D002 A | 3.36~3.38 | |
| Fe (ppm) | ≤5ppm | |
| Cr ( ppm ) | ≤2ppm | |
| Zn ( ppm ) | ≤2ppm | |
| Ni ( ppm) | ≤2ppm | |
| Moisture % | <0.1< td=""> | |
| Ash % | <0.02< td=""> | |
| First Discharge Capacity (mAh/g) | 360~370 | |
| Cycle life | cycle 500,the capacity>88% | |
| Appearance | Black Powder,No Agglomeration,No Sundries | |
