Mineral Fiber Ceiling Panel Nrc Suspended Mineral Fiber Ceilings

Product Description:

1,Structure of （Mineral  Fiber Ceiling ） Description

1. Sagging resistance
2. Mold resistance
3. Sound absorption
4. Thermal insulation
5. Non-asbestos & non-formaldehyde.

2,Main Features of the （Mineral  Fiber Ceiling ）

TRUSUS acoustic mineral fiber board is made from Wet-formed mineral fiber, mineral wool, expanded perlite, ATTA clay, scoria and starch,etc. Non asbestos and formaldehyde, Insulation moisture-proof, its belong to environmentally friendly product..

  Specification

Size: 595*595mm   600*600mm   603*603mm   600*1200mm

       610*610mm   610*1220mm  613*1213mm  300*1200mm

Thickness: 6mm-22mm

Pattern: Lovely worm, Litter star, Pinhole, Perforation, Glacier,etc.

Edge: Square, tegular/revealed, conceal and exceed conceal.

Note: Other specification is available

  Technical Data

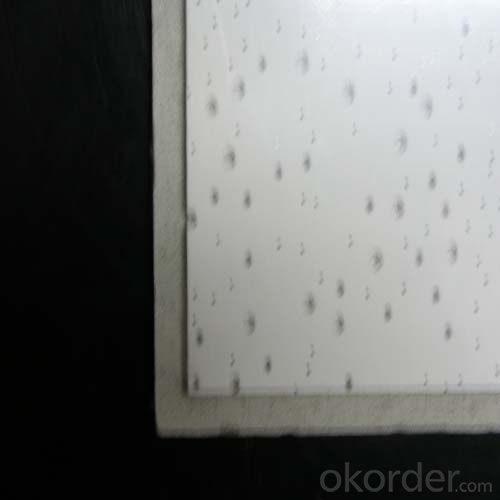

3,（Mineral  Fiber Ceiling ） Images

4,（Mineral  Fiber Ceiling ） Specification

5,FAQ of （Mineral  Fiber Ceiling ）

Resistant humidity: RH90/RH85

NRC: 0.55

CAC: minimum 33

Water content: ≤3%

Light reflectivity: Minimum LR 0.83

Sound absorption: EN20140-1994

Fire performance: Meet GB8624-1997 Class B1

Thermal conductivity: 0.065W/mk

Asbestos: free

Formaldehyde: free

Sagging resistance: plus-appropriate for high humidity interior applications up to 80% relative humidity , temperature up to 120F(40°C) no visible sag.

  Application

It was Widely used in factory, meeting room, super- market, office, station, hospital, hotels, restaurants, shopping areas, theaters, conference halls studios, computer rooms, airport, home decoration or in any area that requires tackability with modest sound absorption.
