Supply TNG12-100T desiged for solar street light On-grid off-grid energy storage gel battery

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1 pc

Supply Capability:100000 pc/month

Product Description:

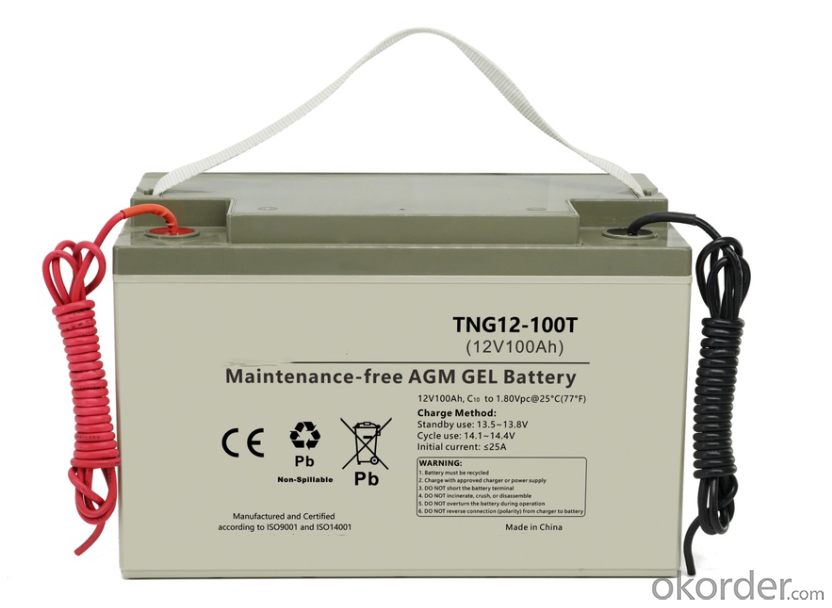

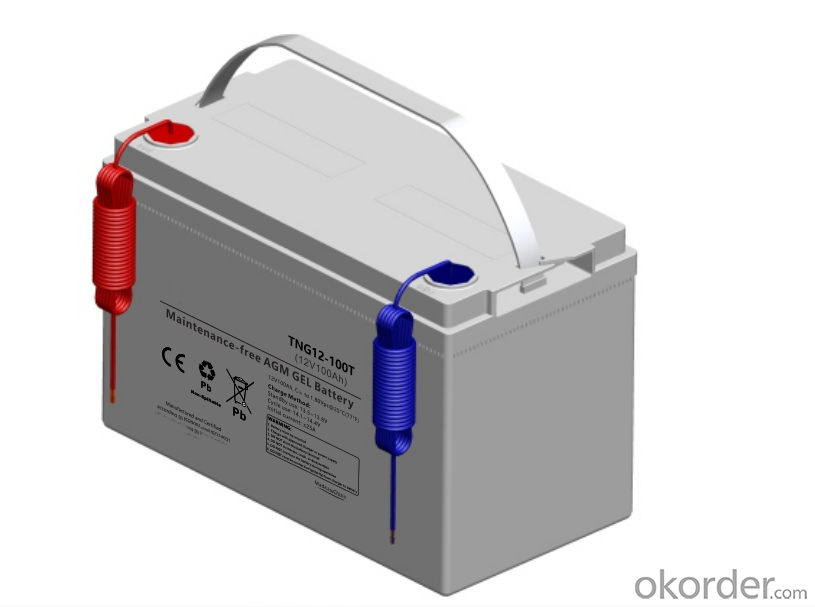

TNG12-100T desiged for solar street light

Product Features

General Purpose (GEL)		260~300 Cycle Times @100%DOD
↑20%	↑10%	↑20%	↓50%
Cycle Life	Low Temp. Capacity	Charge Acceptance	Grid Corrosion
High temperature curing	Nano gel electrolyte	Special negative additive	Rare-earth patent alloy

Product Applications

Physical Specification

Model

Dimensions (mm/inch)

Weight (kg/lbs)

Terminal

Container

TNG12-100

Length

Width

Height

Total Height

30.6/67.5

I7

ABS UL94-HB
( Optional: FR ABS UL94-V0)

330/13.0

172/6.77

214/8.43

221.5/8.72

Product Specifications

Nominal Voltage	Rated Capacity25℃/77°F	Internal Resistance	Max. Discharge Current	Operating Temp. Range
12V	106Ah 20hr Rate (1.80V/cell)	‍‍4.3mΩ@25℃/77°F	700A (5s)	Discharge: -15~50℃ (5~122℉)
	100Ah 10hr Rate (1.80V/cell)			Charge: -0~40℃ (32~104℉)
	87Ah 5hr Rate (1.75V/cell)			Storage: -15~40℃ (5~104℉)
	79Ah 3hr Rate (1.70V/cell)			Optimum: 25±2℃ (77±4℉)

Constant Current Discharge (A)@25℃ (77℉)

‍

‍

Constant Power Discharge (W/cell)@25℃ (77℉)
