Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:1000000 PCS PER MONTH watt/month
1.CE,ROHS certificates
2.OEM&ODM offferred
3.3years warranty
4. IP65
5. Bridgelux chips

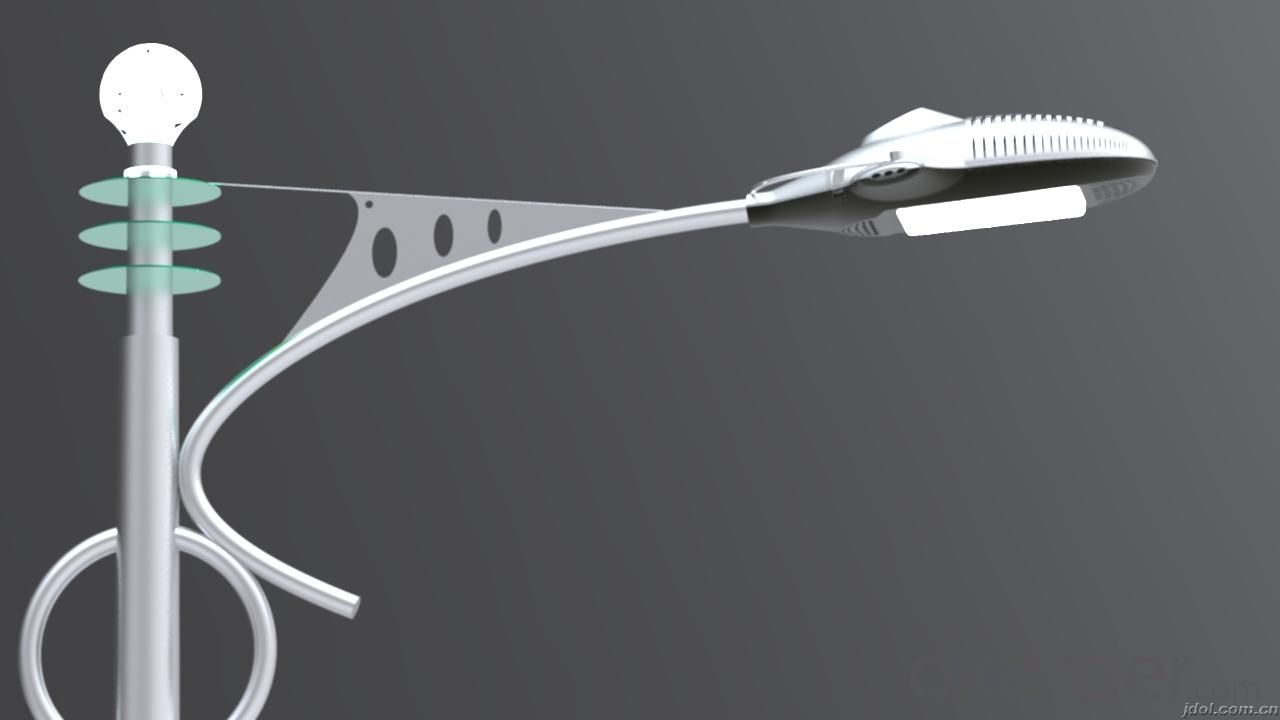

LED Street light Main Technical Parameters
| Input Voltage | AC 85V~265V | |
| Freqency Range | 50Hz~60Hz | |
| Total Harmonic Distortion | ≤ 9 % | |
| Power Factor | > 0.9 | |
| Power Efficiency | > 87 % | |
| Working Voltage | DC 30~36V | |
| Led | 1 pc | |
| Led Consumption | 38 W | |
| System Consumption | 45 W | |
| Led Luminous Efficiency | 60-100 LM/W | |
| Led Initial Flux | WW | 2548Lm |
| PW | 2800 Lm | |
| CW | 2600 Lm | |
| lamp's Efficiency | > 91 % | |
| Average Illuminance | Height:8M | > 13 Lux |
| Height:10M | > 10 Lux | |
| Height:12M | > 6 Lux | |
| Illuminance Area | Height:8M | 20*16 M |
| Height:10M | 23*18 M | |
| Height:12M | 26*20 M | |
| Illuminance Uniformity | >0.4 | |
| Color Temperature | WW | 2700K~3900K |
| PW | 3900K~6000K | |
| CW | 6000K~7000K | |
| Color Rendering Index | WW | Ra>68 |
| PW,CW | Ra>75 | |
| Light Distribution | Rectangle expression | |
| Light Design | LED+reflector twice luminous intensity distribution | |
| Junction Temperature | ≤80°C | |
| Working Temperature | - 40 °C ~ +55°C | |
| Storage Temperature | -25°C ~ +65°C | |
| IP Grade | IP65 | |
| Working Life-span | 50000 Hrs | |
| The color of the lamp shell | White | |
| Certificate | CE & ROHS | |
Feature:
1. Low Voltage working, safe and reliable, meeting different environment;
2. High heat conductivity, low luminous decay, pure light color and no ghosting;
3. The LEDs closely connected to the crust ensures life-span effectively;
4. No air pollution,no heat radiation, hydrargyrum and any other contamination;
5. Housing dustproof and jet-proof; no internal cleaning required;
6. High quality electronic control gear, it is both energy saving and durable;
7. Explosion proof design;
8. High brightness, & Energy saving;
9. Low power consumption.
Application:
1. Tunnel, Subway, Underground Lighting;
2. Gymnasium, Sports Stadium Lighting;
3. Building, Billboard Lighting;
4. Gas Station, Garage Lighting;
5. Park, Garden Lighting;
6. Workshop, Factory Lighting;
7. Warehouse, Storage Lighting;
8. Yard, Square Lighting;

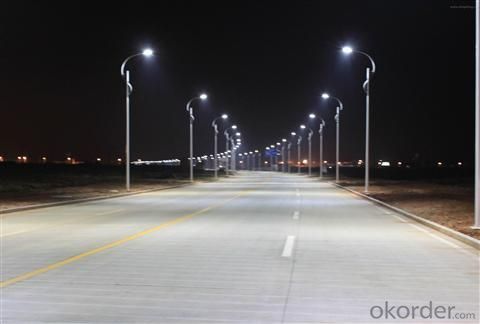

9. Road,Highway Lighting;
10. Station,Dock Lighting etc.
