Loading Port:Shenzhen
Payment Terms:T/T
Min Order Qty:1 Piece pc
Supply Capability:50000 Pieces per Month pc/month

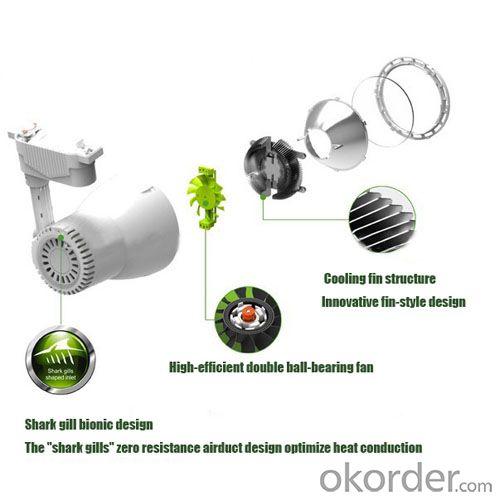

Super brightness 30W COB led track light :
Name
| SY-DBL1007 |
Parameter | |
LED Brand | Epistar 45mil COB led |
total power | 30W |
IP code | IP20 |
adjustment | vertical 90°, horizonal 350° |
Safety class | CLII [Safety class II] |
Life Span | 50,000 hours a t 25ºC,(70% lumens at 30000hr) |
warranty | 3 years |
Mounting | |
if 3 circuit track | On 3-circuit track (3C or 3 phase) |
if 2 circuit track such as halo | On 2-circuit track (2C or 3 lines) |
Electrical Characteristics |
|
power of led module | 30W Chip |
Voltage | 100-240 V/100-277V |
Line Frequency | 50-60 Hz |
Lamp Current mA | 1050mA |
Operating temperature range | -20 to +50ºC |
Transformer/ power supply unit | driver built-in |
Light Technical Characteristics |
|
Color Code | NW(WW,CW option) |
Beam Angle | 25° |
Correlated Color Temperature | 4000 K(3000 K, 6000K option) |
Luminous Flux(more lumens with other LED grade) | 3000lm(4000K), 2950lm(3000K) |
Color rendering index | 83(3000K) |
Accessories | track Rail, track rail connector |
Led Track light features:
1. Replace to coventional track lightor incandescent track light directly;
2. Long life-span, small light decline rate.
3. LED light spectrum does not attract pesky bugs
4. Beautiful appearance, High brightness output with the glass cover
5. Green Product, No ultraviolet and infrared radiation
Our Service:
If you can not find the one you need, please also send us a message,
our engineer department would like to design new items for you.
(ODM AND OEM SEVICE!)

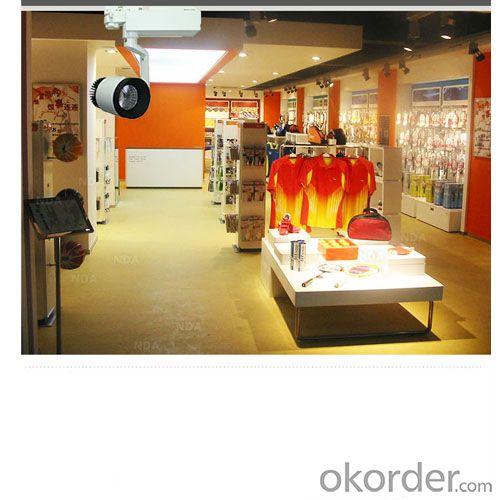

Application:
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
Factory:
