Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:I Unit unit
Supply Capability:100 Unit per Month unit/month
Specifications of Storage System
Storage System mainly used in Solar Power System, such as on-grid power system, off-grid power system, small home system and wind-oil-solar integrated system. Our company's products have the features below:
1.Ensure system security by adopting advanced local management unit to realize time monitor working status of system,and send the data to the main measurment unit of system;
2.High security and reliability by adopting advanced technology of insulation and protection, and system integration;
3. Realize fast installation.
Electrical Characteristics of Storage System
| Item | Parameters | Characteristics |
| 1 | Cell Type | LP 2770120DC-16.5Ah(16S6P) |
| 2 | Total Energy BOL | 4.8kWh |
| 3 | Capacity BOL | 100Ah(Min.96Ah) |
| 4 | Norminal Voltage | 48V |
| 5 | Charge cut off voltage | 56V |
| Charge current | 0.3C | |
| 6 | Max.constant discharge current | 0.3C |
| Max.pulse discharge current | 50A@30s | |
| Discharge Cutoff Voltage(V) | 43.2V | |
| 7 | Initial Internal Impedance (Max.) | 8m |
| 8 | Communication | CAN 2.0 Communication |
| 9 | System Weight | ~70Kg |
| 10 | Outline Dimensions(L*W*H) | 930*433*185mm |
| Operating Environment & Protection | ||
| 1 | Charge Operating Temperature Range | 5-40 ℃ |
| 2 | Discharge Operating Temperature Range | 0-40 ℃ |
| 3 | Transport or Storage Temperature Range | Minus 10~45 ℃ |
| 4 | Humidity | ≤ 65±20% |
| 5 | Protection Level | IP 32 |
| 6 | Dimensions incl. Packaging(L*W*H) | 1115*560*400 |
| 7 | Packaging on Pallets | 5 |
Usage and Application of Storage System
Storage System mainly used in Solar Power System, such as on-grid power system, off-grid power system, small home system and wind-oil-solar integrated system.

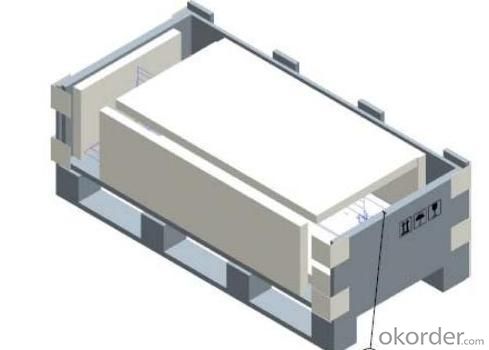

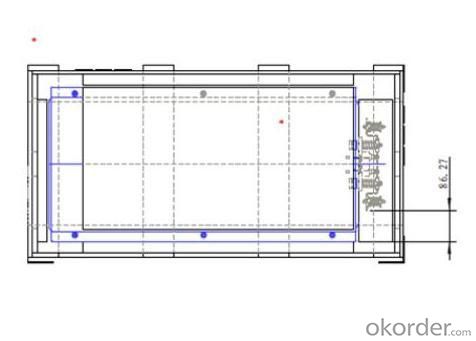

Package and Delivery of Storage System
Carton and Wood Package, Delivery by sea.
Factory Picture of Storage System
