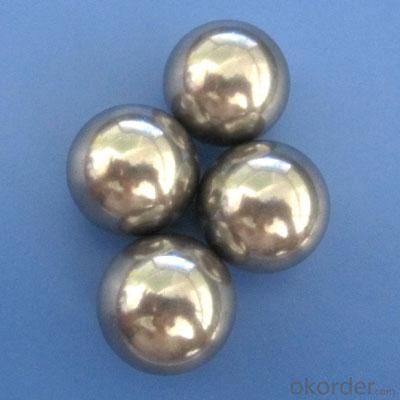

Steel Shot S460 /Steel Ball for Surface Preparation

Loading Port:Qingdao

Payment Terms:TT OR LC

Min Order Qty:25 m.t.

Supply Capability:5000 m.t./month

Product Description:

Product Description:

1.18 years on metal abrasives manufacturing and exporting.
2. Delivery within 15 days.
3. Full transport insurance.
4. Sell to 32 countries on 5 continents.

Size:
S780, S660, S550, S460, S390, S330, S280, S230, S170, S110, S70

Chemistry Composition:

C	Mn	Si	S	P
0.70-1.20%	0.60-1.20%	0.40-1.20%	≤0.05%	≤0.05%

Steel Shot S460 /Steel Ball for Surface Preparation

Average degree of hardness:

Normal	40-50HRC (377-509HV)
Special	52-56HRC (543-620HV)
Special	56-60HRC (620-713HV)
Minimum density	7.4g/cm3

Package:
25kgs/bag, 40bags/ton/pallet
1000kgs/ton bag

Product Standard:
American automobile engineer's association "SAE J827Cast steel shot standard"

Cast Steel Shot Grain the degree distribute


The eyes count	mm	sizes
The eyes count	mm	2.5	2.0	1.7	1.4	1.2	1.0	0.8	0.6	0.5	0.3	0.2
7	2.80	all pass
8	2.36		all pass
10	2.00	85% min		all pass	all pass
12	1.70	97% min	85% min		5% max	all pass
14	1.40		97% min	85% min		5% max	all pass
16	1.18			97% min	85% min		5% max	all pass
18	1.00				96% min	85% min		5% max	all pass
20	0.850					96% min	85% min		10% max	all pass
25	0.710						96% min	85% min		10% max
30	0.600							96% min	85% min		all pass
35	0.500								97% min	85% min	10% max
40	0.425									97% min		all pass
45	0.355										80% min	10% max
50	0.300										90% min
80	0.180											80% min
120	0.125											90% min
200	0.075
325	0.045
SAE Standard		S-780	S-660	S-550	S-460	S-390	S-330	S-280	S-230	S-170	S-110	S-70
