Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:1000 kg
Supply Capability:500000 kg/month
Concrete Admixture Steel Fiber
Steel Fiber
1. Directadding steel fibers to the belt,the rows of steel fiber as a whole,each of the concrete uniformly dispersed Corner
2. A water-soluble glue starts to dissolve,in a row of steel fibers in a dispersion premise,dispersed again in every corner of the monofilament fiber,showing a perspective view in the concrete of the fiber web, which play the role of an overall reinforcement.
3. Compare to the monofilament fiber,the glued steel fiber wouldn't be tied up,to ensure that the fibers in the concrete mixing does not agglomerate,distributed evenly.
model
| length(mm) | diameter(mm) | L/D
| Tensile strength | The number of per kg |
65/35 | 35 | 0.55 | 65 | ≥1100 | 14500 |
80/50 | 50 | 0.62 | 80 | ≥1100 | 8100 |
100/60 | 60 | 0.62 | 100 | ≥1100 | 6800 |
80/60 | 60 | 0.75 | 80 | ≥1100 | 4600 |
65/60 | 60 | 0.90 | 65 | ≥1000 | 3200 |
55/60 | 60 | 1.05 | 55 | ≥1000 | 2300 |
Steel Fiber Applications
Widely used in the highway pavement, bridge, tunnel, industry, floor, airport pavement, building structure,
underground engineering, underwater engineering, water-proof engineering, hydropower station, harbor pavement,
military engineering and all kinds of concrete prefabricated part.

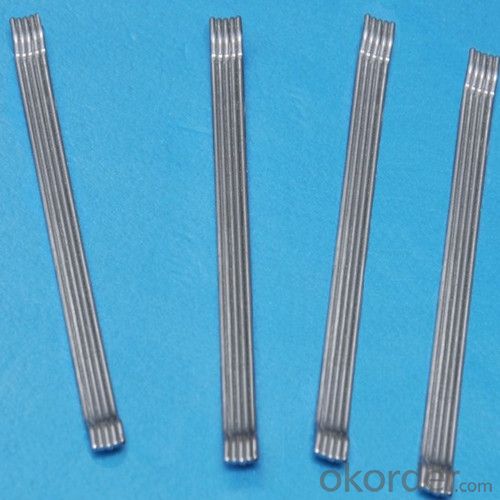

● Steel Fiber
Indentation Steel fiber(S1)
Equivalent diameter:0.5-0.9mm Length:25, 30, 50mm
Tensile strength:≥400MP Elastic modulus:≥210GPa Common dosage:30-80kg/m3
Hooked Steel Fiber(S2)
Diameter:0.3-0.9mm Length:30, 35, 60mm
Tensile strength:≥1100MPa Elastic modulus:≥210GPa Common dosage:15-60kg/m3
High Strength Micro Steel Fiber(S3)
Diameter:0.18-0.22mm Length:12-13mm
Tensile strength:≥2900MPa Elastic modulus:≥210GPa Common dosage:60-180kg/m3
Packaging, Transport and Storage
1.Normally package is 0.6kg/bag, 0.9kg/bag, the packaging materials are plastic film bags or water-soluble
paper bags. Other types of packaging as requested.
2.Handling and transportation is very convenient.
3.Should be sealed in a dry, cool place, shelf life of 2 years.
