steel coils slitting line machine roll forming machine

Product Description:

Structure of steel coils slitting line machine Description

The production line is a thick metal coil leveling and cut into a massive of special equipment. Usually cited by the feeding car,uncoiler,pallet pressure device,leveling host activitiesacross the bridge,guide corrective device,length agencies,film equipment,shear,conveyor table,pneumatic discharge rack,hydraulic lift the composition of the pile material, material transport roller and hydraulic system,electrical control system, the concerted action of PLC control. The main hydraulic,pneumatic and electrical conreol components,cot to length system selected international brands.

Main Features of the steel coils slitting line machine

This equipment is mainly used for processing cold-rolled carbon,stainless steel coil, and non-ferrous metal coil, configuration,six leveler to theentire pacification of long shear plate surface of the metal aluminum and other high coil.

According to customer requirements, the fine two leveler can be used early; fixed length sent to shear can be ordinary mechanical appliances collaborative action, digital variable frequency or AC servo technology; shears can be equipped with the ordinary machienry, hydraulic press type electromagnetic clutches,pneumatic  clutch transmits power high speed gate shear, mobile tracking the chase cut and rotary flying shear machine. Supporting related molding machine can be used for a wider range extension.

steel coils slitting line machine Specification

1. New Servo conversion control,Intelligent parameter settings.More simple operation and maintenance.

2. 5.7 inch color touching screen easy to control

3. Self failure diagnosis, clear failure display.

4. High sensitivity photoelectric eye color tracing numerical input of cutting/sealing position for extra accuracy.

5. Positioned stop function without sticking knife or wasting film.
6. Temperature independent PID control, more suitable for packaging different materials.

7.  All control realized through software, easy for function adjusting and technical upgrade.
8. The max lenght that can be packed is 6000mm.

9.Defense package

10.Anti-cut material functions

11.Single servo,dual servo and full servo is available.

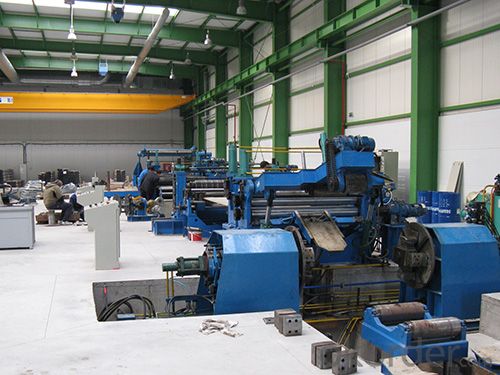

Images of steel coils slitting line machine

FAQ

How do you guarantee the quality?

We can provided CE certificate if we are required.

What's the delivery time?

around 120days after receive your 30% payment.

Where can we see your machines?

You are welcome to visit our factory and test it by yourself.
