Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:500 pc
Supply Capability:12000 pc/month
Structure of Steel Alloy Grooved Drum for Automatic Winder:
1. Raw material of Steel Alloy Grooved Drum for Automatic Winder: metal, Ni-P coated.
2. Product color of Steel Alloy Grooved Drum for Automatic Winder: shiny white.
3. Usage of Ni-P Alloy Grooved Drum for Automatic Winder: applied in groove drum type yarn cone winding machine.
Main Features of the Steel Alloy Grooved Drum for Automatic Winder:
1. High precision, highly polished, self-lubricating on surface, litter friction with yarn are our basic functions.
2. The dynamic balance of our grooved drums are highly accurate, mass-radius product is less than 10g?mm, and the linear velocity can reach 2000m/s.
3. We have high-tech in dealing with surface, and it makes our grooved drums have high wear resistance, corrosion resistance and makes sure the hardness of the groove and surface are the same.
4. Good forming and uniform linear density.

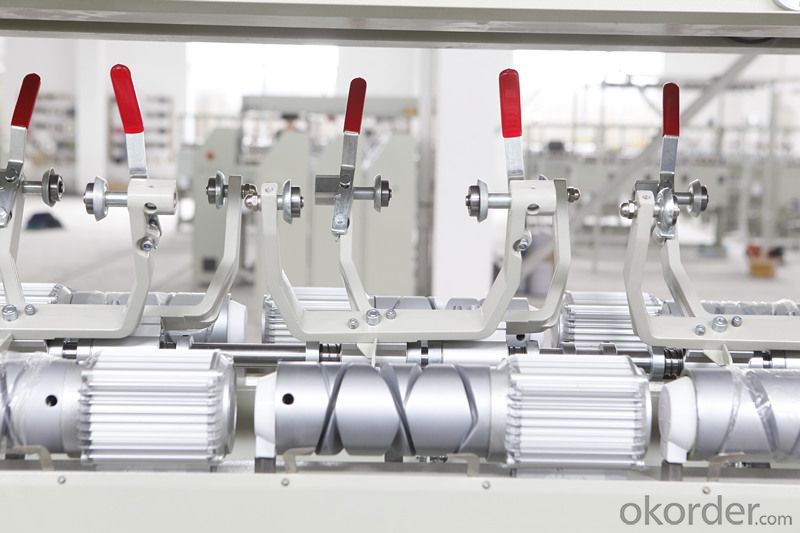

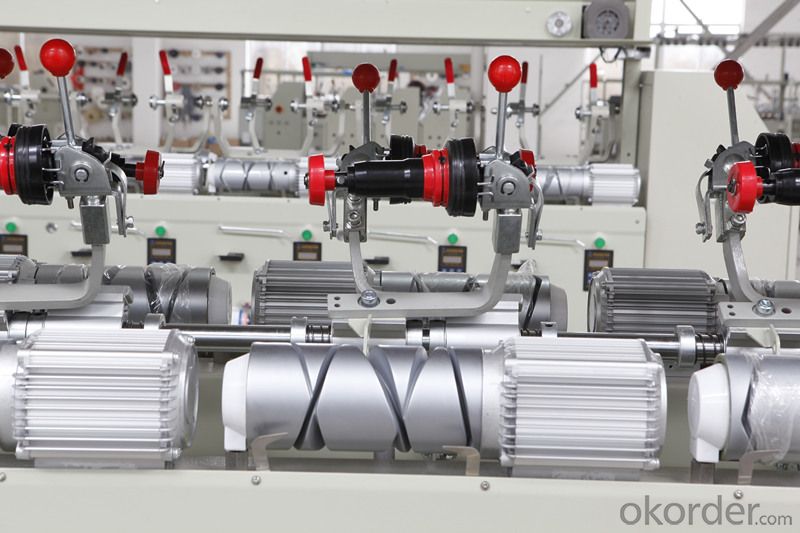

Images of Steel Alloy Grooved Drum for Automatic Winder:
Models of Steel Alloy Grooved Drum:
Model | Groove number of turns | Lead | Aperture | Outer diameter | Length | Package angle |
CT-B | 2.5 | 154 | φ20 | φ82 | 176 | 0° |
CT-S | 2.5 | 147 | φ20 | φ82 | 183 | 0° |
CT-S1 | 2 | 150 | φ20 | φ95 | 176 | 0°—3°30′ |
CT-J | 2.5 | 152 | φ20 | φ82 | 176 | 3°30′—5°57′ |
FAQ of Yarn Winding Machine:
1. Q:What is the machine used for?
A:Vertical Soft Yarn Winder is suitable for processing PP, PE split film yarn/ just twine, cotton twine, weaved twine to ball.
2. Q: What is the MOQ?
A: 100 pc.
?3. Q: What is the lead time of the product?
A: 5-20 days after payment
Packaging & Delivery of Textile Steel Grooved Drum:
Packaging Detail: Wooden case or as per customers' requirements
Delivery Detail: 5 days from receiving the advance payment
