Loading Port:Ningbo
Payment Terms:TT OR LC
Min Order Qty:10000 PCS
Supply Capability:3000000 PCS/month
Stainless steel wedge anchor with china top quality Description:

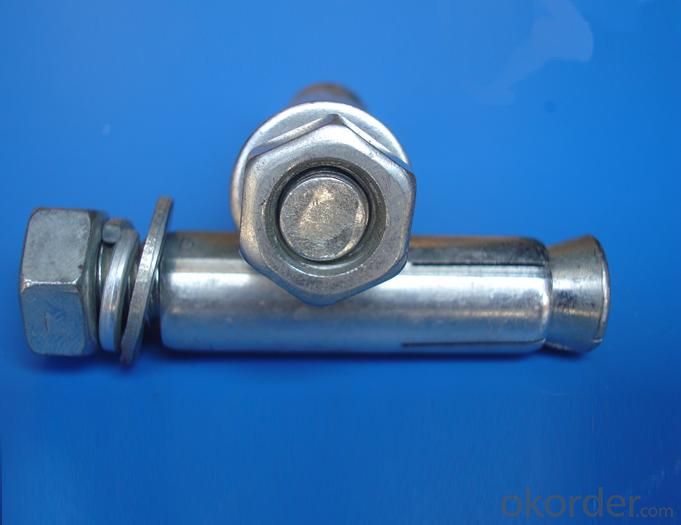

Wedge Anchor
Material: Carbon Steel
Finish: Zinc, H.D.G.
Size: M6--M24
Length: 20--250mm
OEM available
Various sizes available according to customer's drawing or samples.
CNBM is a state owned company has the certification of the world fortune 500 companies.
CNBM paly a key rule in the building material industry. CNBM supply the Wedge Anchor
to the world market in a competive price and quality.
Main Features of Stainless steel wedge anchor with china top quality
Standard: DIN, ANSI, GB
Material: Medium Carbon Steel
Connection:Female
Surface Treatment:Galvanized Sheet
Head Type:Round
Size:M6--M24
Export Markets:Global
Specification of Stainless steel wedge anchor with china top quality
size | Thread | Drilling | MinLength of | Weight(kgs)/ | Pull Out |
length(mm) | Diameter(mm) | Embedment(mm) | 1000Pcs | Load | |
6*50 | 25 | 6 | 30 | 13 | 850 |
6*60 | 35 | 6 | 35 | 14 | |
6*70 | 45 | 6 | 35 | 15.5 | |
6*80 | 55 | 6 | 35 | 16.5 | |
8*50 | 20 | 8 | 35 | 22.7 | 1150 |
8*70 | 40 | 8 | 40 | 29 | |
8*80 | 50 | 8 | 40 | 31 | |
8*100 | 70 | 8 | 40 | 37 | |
8*120 | 90 | 8 | 40 | 43 | |
10*60 | 25 | 10 | 40 | 44 | 1500 |
10*80 | 45 | 10 | 50 | 53 | |
10*100 | 65 | 10 | 50 | 62 | |
10*120 | 85 | 10 | 50 | 71 | |
10*150 | 110 | 10 | 50 | 85 | |
12*80 | 40 | 12 | 50 | 77 | 2300 |
12*100 | 60 | 12 | 60 | 90 | |
12*120 | 80 | 12 | 60 | 105 | |
12*150 | 110 | 12 | 60 | 127 | |
16*100 | 50 | 16 | 70 | 165 | 3400 |
16*150 | 100 | 16 | 80 | 234 | |
16*200 | 150 | 16 | 80 | 292 | |
20*100 | 45 | 20 | 80 | 277 | 5400 |
20*150 | 95 | 20 | 100 | 379 | |
20*200 | 140 | 20 | 100 | 477 | |
20*300 | 230 | 20 | 100 | 665 |
Packages of Stainless steel wedge anchor with china top quality
5.FAQ
We have organized several common questions for our clients，may help you sincerely：
①How about your Wedge Anchors ？
One of the most biggest manufacturer & supplier of ，Stainless steel wedge anchor with china top qualityfactory in China. Annually more than 10000 tons wires and wire mesh are exported to markets all over the world. Different kinds of Wedge Anchors are available according to customer’s requirements.
②What is your Technical Information of your Wedge Anchors?
1).Material: super carbon steel
2).Processing by drawing, hot-dip zinc-plating
3).Standard wire gauge from 8# to 24#
4).Super in corrosion resistance
5).Firm coating layer
6).Custom size available
White Steel Packing Strips SAE1006 SAE1008 CNBM Brand Made in China
③How long can we receive the product after payment?
We can produce special specification as per customers request,and we can make the edge smoother of the steel packing strips
In the purchase of Galvanized Iron Wire within three working days, We will arrange the factory delivery as soon as possible. The pacific time of receiving is related to the state and position of customers. Commonly 15 to 20 working days
can be served.
