Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:100000 m.t./month
| Minimum Order Quantity: | 5 Tons | Unit: | m.t. | Loading Port: | China Main Port |
| Supply Ability: | 1000 Tons Per Month | Payment Terms: | TT or LC |

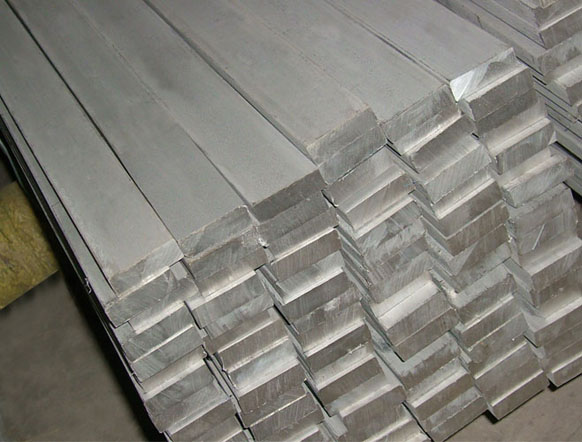

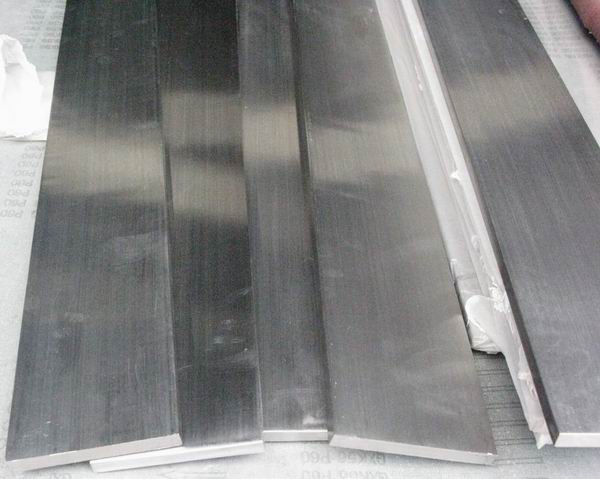

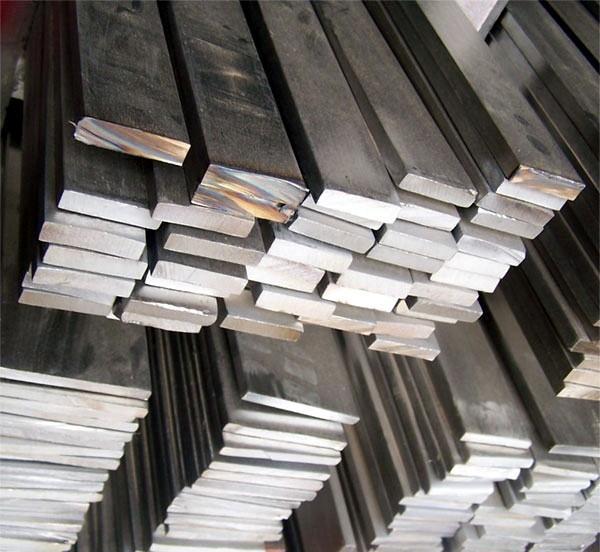

Stainless Steel Flats
1. Standard: AISI, GB, JIS, ASTM, DIN, EN
2. Grade: 1).200Series: 201,202.
2).300Series: 301,302,303,304,304L,316,316L,321.
3).400Series: 410,410S,416,420,430,430F.
3. Size:3x25mm- 80x250mm
4. Length: 2m-6m
5. Craft: HRAP, or cold drawn
6. Stainless Steel Flat Bar Surface: Pickling or polished
7. MOQ: 1 Ton
8. Delivery: within 20 days
9. Package: Waterproof with tape
10. Application: These products are widely supplied to areas of machine-made industry, chemical industry, shipping industry,architecture, food industry, household products etc.
Size | Thickness (mm) | |||||||||||
Width (mm) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 25 | 30 |
Theoretical Weight (kg/m) | ||||||||||||
10 | 0.238 | 0.32 | 0.4 | 0.48 | 0.63 | |||||||
15 | 0.36 | 0.48 | 0.59 | 0.71 | 0.95 | 1.19 | ||||||
20 | 0.476 | 0.63 | 0.79 | 0.95 | 1.27 | 1.59 | 1.9 | |||||
25 | 0.585 | 0.79 | 0.99 | 1.19 | 1.59 | 1.98 | 2.38 | |||||
30 | 0.714 | 0.95 | 1.19 | 1.43 | 1.9 | 2.38 | 2.85 | 3.33 | 3.81 | 4.75 | 5.948 | |
40 | 0.952 | 1.27 | 1.59 | 1.9 | 2.54 | 3.17 | 3.81 | 4.44 | 5.08 | 6.34 | 7.93 | 9.52 |
50 | 1.19 | 1.59 | 1.98 | 2.38 | 3.17 | 3.97 | 4.76 | 5.55 | 6.34 | 7.93 | 9.91 | 11.9 |
60 | 1.428 | 1.9 | 2.38 | 2.85 | 3.81 | 4.76 | 5.71 | 6.66 | 7.61 | 9.52 | 11.9 | 14.27 |
70 | 2.22 | 2.78 | 3.33 | 4.44 | 5.55 | 6.66 | 7.77 | 8.88 | 11.1 | 13.88 | 16.65 | |
80 | 3.17 | 3.81 | 5.08 | 6.34 | 7.61 | 8.88 | 10.15 | 12.69 | 15.86 | 19.03 | ||
90 | 3.57 | 4.28 | 5.71 | 7.14 | 8.56 | 9.99 | 11.42 | 14.27 | 17.84 | 21.41 | ||
100 | 3.97 | 4.76 | 6.34 | 7.93 | 9.52 | 11.1 | 12.69 | 15.86 | 19.82 | 23.79 | ||
110 | 5.23 | 6.98 | 8.72 | 10.47 | 12.21 | 13.96 | 17.45 | 21.81 | 26.17 | |||
120 | 5.71 | 7.61 | 9.52 | 11.42 | 13.32 | 15.23 | 19.03 | 23.79 | 28.55 | |||
130 | 6.19 | 8.25 | 10.31 | 12.37 | 14.43 | 16.49 | 20.62 | 25.77 | 30.93 | |||
140 | 6.66 | 8.88 | 11.1 | 13.32 | 15.54 | 17.76 | 22.2 | 27.76 | 33.31 | |||
150 | 7.14 | 9.52 | 11.9 | 14.27 | 16.65 | 19.03 | 23.79 | 29.74 | 35.69 | |||
160 | 7.61 | 12.69 | 15.23 | 17.76 | 20.3 | 25.38 | 31.72 | 38.06 | ||||
170 | 13.48 | 16.18 | 18.87 | 21.57 | 26.96 | 33.7 | 40.44 | |||||
180 | 14.27 | 17.13 | 19.98 | 22.84 | 28.55 | 35.69 | 42.82 | |||||
