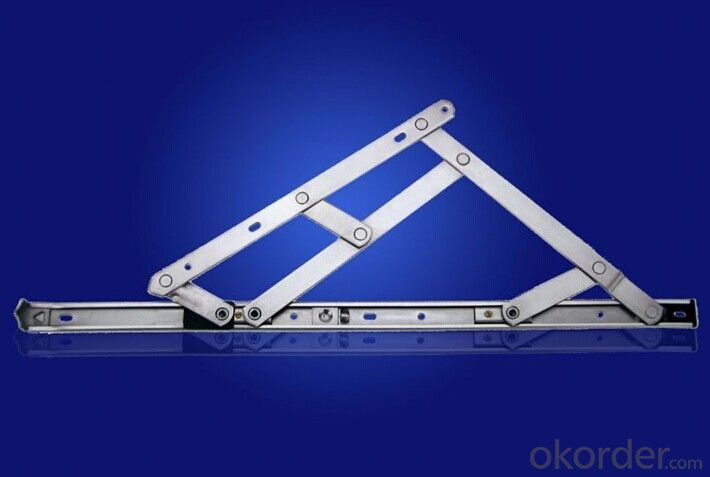

1. Features of Stainless Steel Window Stay
1). 22mm square slot, non-handed, heavy-duty friction stays. Suitable for till & turn casement PVC steel window or aluminium window
2). Nylon-steel slider for strength, durabitity and smooth operation.
3). Be made of grade 304 stainless steel for maximum strength and longevity. High resistance to corrosion.
2. Specifications of Stainless Steel Window Stay
Length(inch) | Slot Width | Bar Width | Bar Thickness | Max Weight | Opening |
12” | 22.0 | 18.0 | 2.0/2.5 | 25 | 30±2° |
14” | 22.0 | 18.0 | 2.0/2.5 | 35 | 30±2° |
16” | 22.0 | 18.0 | 2.0/2.5/3.0 | 40 | 30±2° |
18” | 22.0 | 18.0 | 2.5/3.0 | 45 | 30±2° |
20” | 22.0 | 18.0 | 2.5/3.0 | 50 | 40±2° |
22” | 22.0 | 18.0 | 2.5/3.0 | 55 | 40±2 |
24” | 22.0 | 18.0 | 2.5/3.0 | 66 | 43±2° |
3. More Photos and Factory Show of Stainless Steel Window Stay
