Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:20 unit/month

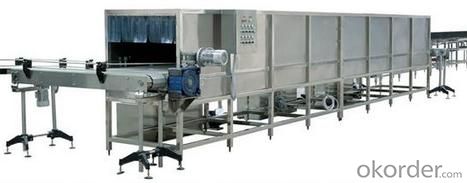

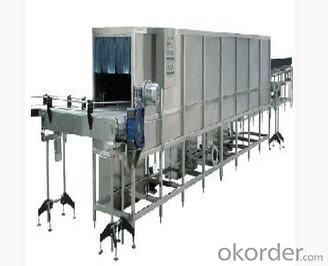

This machine is digested and absorbed, Germany, Italy, Taiwan, on the basis of similar equipment and technology made a new design, with circulation of hot water spray cooling, warm water pre-cooling, cold water cooled three-stage treatment. Cool, warm bottles of temperature, time can be adjustable according to user requirements, a high degree of automation. Used in a variety of bottles, filling hot drinks, carbonated beverage cooling, heating, this machine is the U.S. brand Rexnord high temperature polypropylene (CPP) chain plate. Body with stainless steel plate manufacture, reliable, and looks beautiful.
Main technical parameters | ||||
Model | PLJ-4000 | PLJ-6000 | PLJ-12000 | PLJ-16000 |
Cappacity(B/H) | 3000-4000 | 5000-6000 | 8000-12000 | 13000-16000 |
Heating temperature(℃) | 37-45 | |||
Cooling time | 12-15(min) | |||
Conveyor belt speed | 100-550 | |||
Mesh belt width(m) | 1.22 | 1.22 | 1.5 | 2.0 |
Power(MPa) | <0.4< span=""> | |||
Amount of circulating water(m3/h) | 6 | 9 | 15 | |
Steam consumes | 80 | 120 | 250 | 400 |
Motor Power(kw) | 6 | 7.55 | 8.6 | 8.6 |
Dimension(mm) | 4000×1500×1650 | 6000×1500×1650 | 8000×1800×1650 | 8000×2300×1650 |
Weight(kg) | 2500 | 3500 | 4800 | 7500 |
Based on the advanced technology from Germany, Italy, and Taiwan, We developed this new type of bottle cooling/heating machine. Its working-process can be divided into three stages: circulating hot-water spraying, warm-water pre-cooling and cold-water cooling. The cooling-heating temperature can be regulated according to the requirements of the user.
It is suitable for cooling and heating all kinds of bottled or canned hot beverage or aerated beverage. It is equipped with REXNORD (USA famous brand) chain plate, which is made of high temperature-resistant polypropylene (CPP). This machine is reliable in running and has beautiful appearance.
