Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:20 set
Supply Capability:1500 set/month
Split Solar Heating System with no Copper Coil Inside Water Tank Model SS-M0 is composed of solar collector, tank with no copper coil, working station and expansion tank, which are linked and controlled by the valves. Solar heating system is really a good supplement of gas or electricity, for when there is rich sunlight in summer, a correctly sized solar system can provide 60%-70% of a household's hot water needs and produces no environmental waste or pollution.
2. Main Features of Split Solar Heating System with no Copper Coil Inside Water Tank Model SS-M0
· Food-grade stainless steel SUS304-2B inner tank
· High heat transfer efficiency
· Combined with auxiliary electricity, gas and other boiler
· Easy installation according to the structure of the room

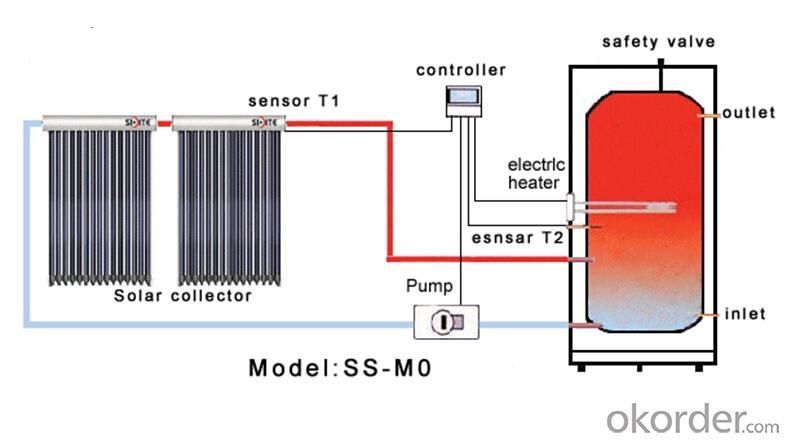

3. Split Solar Heating System with no Copper Coil Inside Water Tank Model SS-M0 Images (showing the working status and the installation instructure)
4. Split Solar Heating System with no Copper Coil Inside Water Tank Model SS-M0 Specification
System model | SS-M0-150 | SS-M 0-200 | SS-M 0-250 | SS-M0 -300 | SS-M 0-400 | SS-M0 -500 |
Tank capacity（L） | 150 | 200 | 250 | 300 | 450 | 500 |
Copper coil qty | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
Solar collector model | SC-H-15/20 | SC-H-20/24 | SC-H-25/30 | SC-H-30/20 | SC-H-20/24 | SC-H-25/30 |
Solar collector qty | 1/1 | 1/1 | 1/2 | 1/2 | 2/2 | 2/2 |
Controller model | SR868C8 | SR868C8 | SR868C8 | SR868C8 | SR868C8 | SR868C8 |
Work station model | VSP-S1 | VSP-S1 | VSP-S1 | VSP-S1 | VSP-S2 | VSP-S2 |
Expansion tank spec | 12L | 12L | 18L | 18L | 24L | 24L |
Medium volume | 12L | 12L | 18L | 18L | 24L | 24L |
Recommended Flow | 1.0～2.0L/min | 1.2～2.5L/min | 1.5～3.0L/min | 3.0～5.0L/min | 4.0～7.0L/min | 5.0～8.0L/min |
Max temperature of tank | 95℃ | 95℃ | 95℃ | 95℃ | 95℃ | 95℃ |
Max temperature of system | 95℃ | 95℃ | 95℃ | 95℃ | 95℃ | 95℃ |
Rated pressure of the tank | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa |
Media pre pressure | 0.2～0.3MPa | 0.2～0.3MPa | 0.2～0.3MPa | 0.2～0.3MPa | 0.2～0.3MPa | 0.2～0.3MPa |
Max pressure of system | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Voltage | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz |
Recommended pipe diameter | φ15 | φ15 | φ15 | φ15 | φ22 | φ22 |
5. FAQ
1. Can the solar collectors be used in cold conditions?
Yes. Solar collectors of our company can be used under temperatures as low as -30℃, although performance is greatly reduced in such extreme conditions. Good heat output is still achieved in mild sub-zero conditions.
2. What happens if one of the solar tubes is broken?
Firstly, tubes are very strong and not easily broken, but if the worst should happen, solar tubes can be replaced very easily. The solar collectors of our company can operate with several broken tubes, but the efficiency will be reduced, so it is recommended that broken tubes be replaced immediately.
