Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:-
Product Description
Split Core Current Transformers Low Price
Maximum continuous primary current 5A to 5000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Advantage Of Split Core Current Transformers Low Price
Small size, low cost
High secondary turns
Secure locking hinge

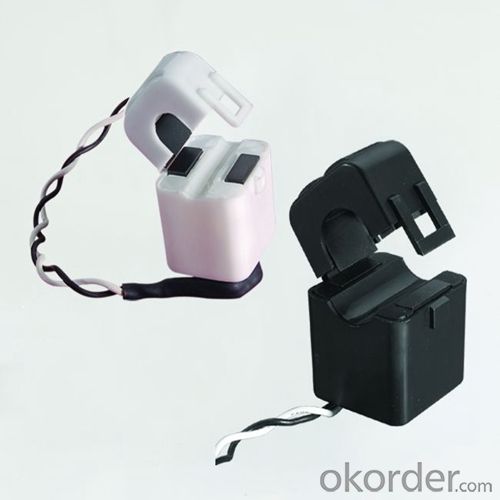

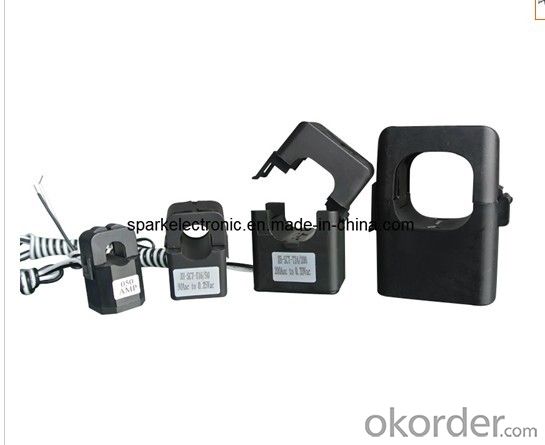

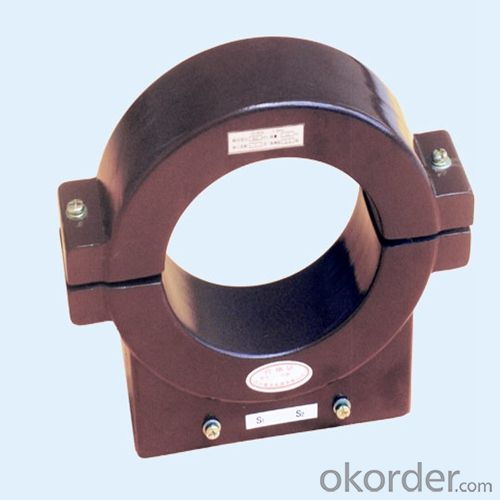

Prduct Images:
specifitication:
| Model | I.D. | Rated Amps | Output | Accuracy | SIZE ( mm ) | ||||
| A | B | C | D | E | |||||
| PCT-0750 | 0.75" (19.1mm) | 5, 15, 30, 50, 70, 100, 150, 200 | 0.333V | 1.0 | 51.6 | 54.1 | 16.6 | 19.1 | 18 |
| PCT-1250 | 1.25" (31.8mm) | 70, 100, 150, 200, 250, 300, 400, 600 | 1.0 | 82.3 | 85.3 | 26.4 | 32 | 32.3 | |
| PCT-2000 | 2.00" (50.8mm) | 400, 600, 800, 1000, 1200 | 1.0 | 120 | 125 | 29.6 | 52.5 | 52 | |
| PCT-3000 | 3.00" x 5.00" (76.2mm x127mm) | 1000, 1200, 1500,2000.3000 | 1.0 | 145 | 199 | 30.5 | 76 | 130 | |
| Model | I.D. | Ratio | Rated Amps | Accuracy |
| PCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
| PCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
| PCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
| PCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
| PCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
FAQ
Q:What price for each watt?
A:It depends on the quantity, delivery date and payment terms
Q:What is your warranty system?
A:Our Solar cells performance guarantees for 25 years
Q:How do you pack your products?
A:We have rich experience on how to pack thecells to make sure the safety on shipment when it arrives at the destination.
