Brief introduction
Our products have been distributed in various areas, like manufacture and maintenance of aircraft and vessels, construction and installation, road and bridge construction, municipal engineering, warehousing, supermarkets and so on. In addition, company also offers special products to Chinese military. All our products have gained approvals of CE, and widely sold in Europe, America, Asia, Africa and other 80 countries and regions.
Specification of Self-Propelled Telescopic Boom Lifts GTBZ36S & GTBZ38S
Model | GTBZ36S | GTBZ38S |
S.W.L(Unrestricted) | 240kg | 330kg |
S.W.L(Restricted) | 450kg | |
Max. Working Height(Unrestricted) | 36.00m | 38.00m |
Max. Working Height(Restricted) | 33.00m | 35.00m |
Max. Platform Height(Unrestricted) | 34.00m | 36.00m |
Max. Platform Height(Restricted) | 31.00m | 33.00m |
Max. Horizontal Reach(Unrestricted) | 22.00m | 24.00m |
Max. Horizontal Reach(Restricted) | 19.00m | 21.00m |
Turntable Tailswing(Axle Retracted) | 1.95m | |
Turntable Tailswing(Axle Extended) | 1.30m | |
Under Ground Reach | 1.10m | 3.00m |
Overall Length(Stowed)(A) | 12.85m | 14.04m |
Overall Width(Axle Retracted)(D) | 2.50m | |
Overall Width(Axle Extended) | 3.80m | |
Overall Height(C) | 3.07m | |
Platform Size | 2.40×0.90m | |
Ground Clearance(E) | 0.32m | |
Wheel Base(B) | 3.80m | |
Turning Radius | ||
Inside/Outside(Axle Retracted) | 4.18/5.15m | |
Inside/Outside(Axle Extended) | 2.37/3.78m | |
Turret Rotation | 360°continuous | |
Platform Rotaton | ±90° | |
Jib Movenent | +70°/-60° | |
Engine(Perkins 804-33T) | 62kw/2600rpm | |
Engine(Deutz TD 2.9 L4 Option) | 55.4kw/2300rpm | |
Fuel | Diesel | |
Travel Speed(Stowed) | 5.10km/h | |
Travel Speed(Working) | ≤1.10km/h | |
Gradeability | 40% | |
Maximum Slope | 5° | |
Hydraulic Tank | 280L | |
Fuel Tank | 150L | |
Tyre | 445/65-22.5 | |
Gross Weight | 20250kg | 21000kg |

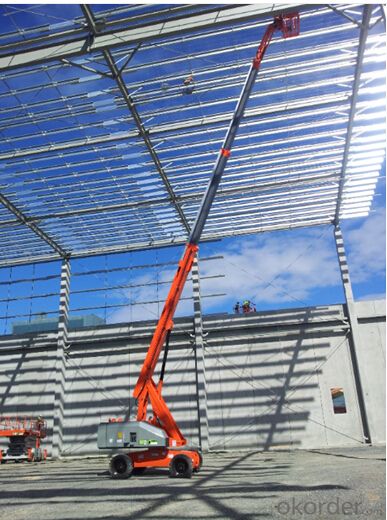

Images of Self-Propelled Telescopic Boom Lifts GTBZ36S & GTBZ38S
More details of Self-Propelled Telescopic Boom Lifts GTBZ36S & GTBZ38S
● Standard equipment | ● Options |
FAQ of Self-Propelled Telescopic Boom Lifts GTBZ36S & GTBZ38S
(1)What kind of product scope do u produce?
Our products have 6 series (more than 80 models), including Telescopic Booms, Articulating Booms, Scissor lifts, Vertical lifts, Mast-Climbers, Aerial Order Picker and so on.
(2)What's the main characteristic ?
● Four-wheel drive provides surperior performance and maneuverability
● Automatic extendable axles
● Aluminum platform control box
● Cable protection package, to prevent accident reduce replacing cost
● Rough terrain capabilities with 40% gradebility
● 24.00m Horizontal reach
● Zero-turn radius
● 360°continuous turntable rotation
● ±90° platform rotator
● Jib(Range of Articulation) 130 Degrees (+70°/-60°)
● Swing out engine tray for easy maintenance access
● On-Board diagnostics help operators troubleshoot on the fly and make
adjustment in the field to maximize uptime
