Loading Port:SHENZHEN Port
Payment Terms:100%TT
Min Order Qty:1000Units unit
Supply Capability:1-10000/month unit/month
Details Of Solar Flat Plate Collector
Specifications Of Solar Flat Plate Collector

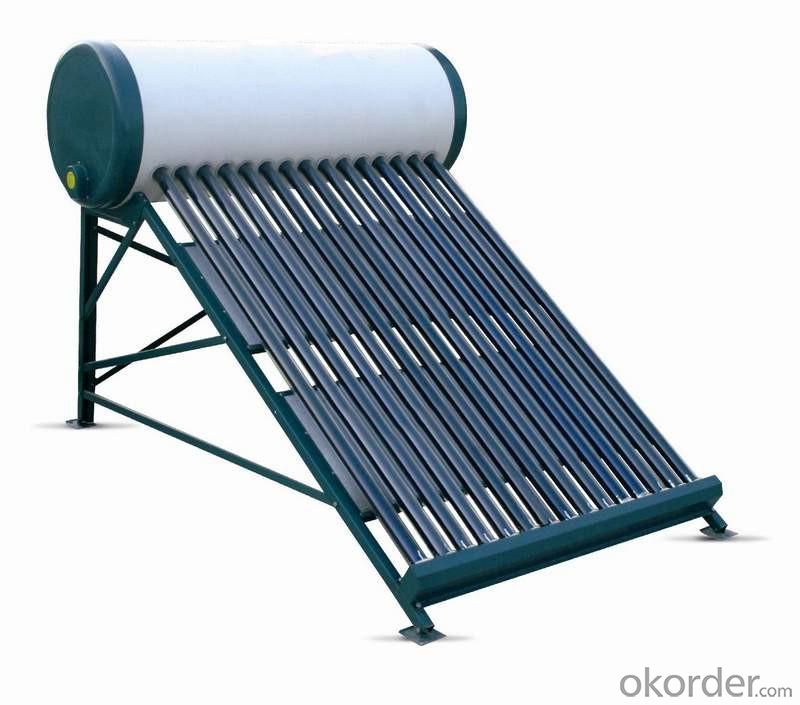

Solar Flat Plate Collector relies on warm water rising, a phenomenon known as natural convection, to circulate water through the evacuated glass tube collector and to the tank. Hot water storage tank is located above the absorber evacuated glass tubes. As water in the absorber heats, it becomes lighter and naturally rises into the tank above. Meanwhile, cooler water in the tank flows downwards into the absorber, thus causing circulation throughout the system
MODEL | FS-PTZ Series |
Size of Frame(mm) | 2000×100×80 |
Size of Fin | φ0.45*141mm |
Aperture area | 2.0 m^2 |
heat absorption coating | anodic oxidation ;nickel plating |
Size of header pipe(mm) | φ22×0.6 |
Size of branch pipe(mm) | φ10×0.5 |
Frame Material | aluminum alloy |
Glass Cover | low iron ultrawhite;toughened glass |
Rated working pressure | 1.0MPa |
Carton Dimension | 2060*1040*100mm |
Weight(KG) | 38 |
Load | 110/20GP |
Advantage Of Solar Flat Plate Collector
1. It takes advantage of the tap water’s pressure. More pressure more comfortable.
2. The water is heated in short time and meeting your demand for hot water.
3. It can produce more hot water than the general types with continuous hot water coming.
Usage/Application Of Solar Flat Plate Collector
Integrated solar water heater,for independent courtyards such as villa, vacation village, rural housing and flat-roof buildings on the groundfloor. Split solar water heater.
Packaging & Delivery Of Solar Flat Plate Collector | |
Packaging Detai | Packaging Detail：Export Carton and Pallet or under customer request. |
Delivery Detail：10-20days | |
