Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:30 set
Supply Capability:30000 set/month

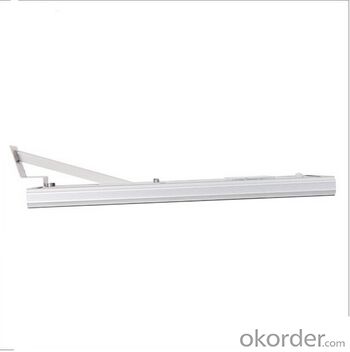

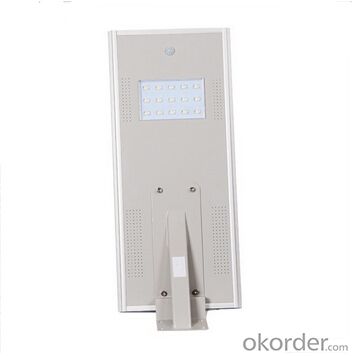

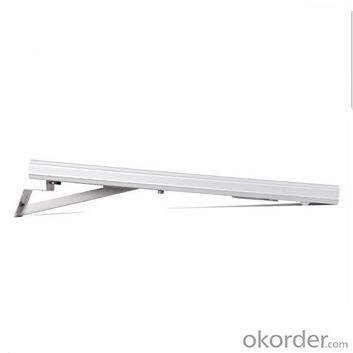

Solar Lantern
All in one solar street light , pure solar energy system power supply, which is used the latest Nande's independent intellectual property rights automatic adaptive infinite shift tracking system, high efficiency silicon plate ensures strong power supply under any weather condition, suitable for street lighting.
√ 12V Safe voltage, easy for installation;
√ 8 - 12hours/ day durative working mode ( adjustable upon per request );
√ 7 - 10 rainy days hardcore mode, high lighting performance throughout the year;
√ 5mm thickness (utmost ) steel light pole, inside & outside hot galvanizing processed;
√ Light fixture stoving plastic treament, smooth and glossy;
√ Wind loading rating: level 12;
√ Level of resistance to hail: 25mm, 80km/ Hour.
Feature:
1.All products have passed EMC and SAFETY tests.
2.Most products have achieved CE and UL certifications.
3.The main chip uses ST (STMicroelectronics).
4.MOS tubes (Field-effect reflection) adopt Toshiba, Fuji and other premium brands.
5.Electrolytic capacitor adpots black diamond and ruby etc.
6.All waterproof power pouring sealant adopts DowCorning.
7.The power adopts environmental friendly process, 100% accords with RoHs standard.
8.The power uses high-accuracy technology.
Specification

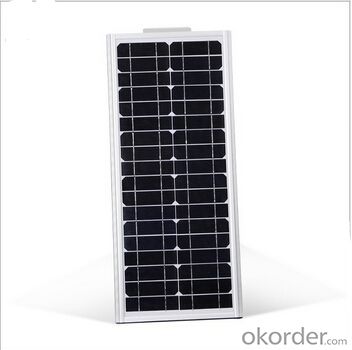

Solar panel | Max power | 80W/ 18V ( monocrystalline silicon) |
Life time | 25 years | |
Battery | Type | 33AH/12.8V lithium battery |
Life time | 5 years | |
LED Lamp (with sensor- pamasomic solusion) | Max power | 60W/12V |
led chip brand | Bridgelux from USA with high brightness | |
lumen(LM) | 6000-6600lm | |
Life time | 50000hours | |
Viewing Angle | 120 | |
Charge time | by sun | 6 hours (with enough strong shine ) |
Discharge time | full power | more 15 hours |
saving mode | more 30 hours | |
working temperature | range( °C ) | -30°C~+70 °C |
colour temperature | range(k) | 6000k |
mounting height | range(m) | 7-9m |
space between light | range(m) | 25-30m |
Lamps material of | aluminium alloy | |
Certificate | CE/RoHS/IP65 | |
Warranty period | 2 years | |
Packing & Weight | product size | 1185*345*140mm |
product weight | 19.2kg | |
packing size | 1220*410*210mm | |
Q'ty/ctn | 1sets/ctn | |
GW.for carton | 21.3kg | |
FAQ
1, What’s price per product ?
A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.
2, How to make payment?
We accept T/T or L/C.
3, What is your lead time?
Generally 1-5 weeks depends on the order quantity and your specific requirements.
4, Can you do OEM for us?
Yes, we can.
5, How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
