Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:30 set
Supply Capability:30000 set/month
Solar Lantern

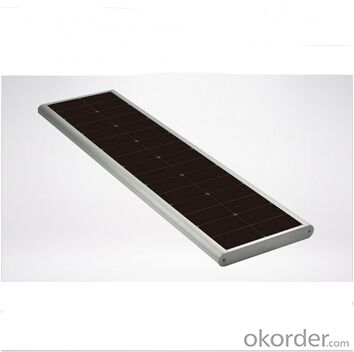

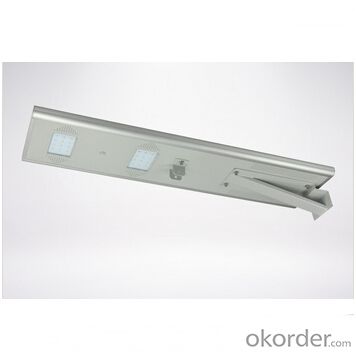

All in one solar street light , pure solar energy system power supply, which is used the latest Nande's independent intellectual property rights automatic adaptive infinite shift tracking system, high efficiency silicon plate ensures strong power supply under any weather condition, suitable for street lighting.
√ 12V Safe voltage, easy for installation;
√ 8 - 12hours/ day durative working mode ( adjustable upon per request );
√ 7 - 10 rainy days hardcore mode, high lighting performance throughout the year;
√ 5mm thickness (utmost ) steel light pole, inside & outside hot galvanizing processed;
√ Light fixture stoving plastic treament, smooth and glossy;
√ Wind loading rating: level 12;
√ Level of resistance to hail: 25mm, 80km/ Hour.
Feature:
1.All products have passed EMC and SAFETY tests.
2.Most products have achieved CE and UL certifications.
3.The main chip uses ST (STMicroelectronics).
4.MOS tubes (Field-effect reflection) adopt Toshiba, Fuji and other premium brands.
5.Electrolytic capacitor adpots black diamond and ruby etc.
6.All waterproof power pouring sealant adopts DowCorning.
7.The power adopts environmental friendly process, 100% accords with RoHs standard.
8.The power uses high-accuracy technology.
Specification
Monocrystalline/Polycrystalline | DC 18V | |
Maximum system voltage (V) | 1000 | |
Temperature Coefficients of Isc (%) | +0.1%/C22 | |
Temperature Coefficients of Voc (%) | -0.38%/℃ | |
Temperature Coefficients of Pm (%) | -0.47%/℃ | |
Temperature Coefficients of Im (%) | +0.1%/℃ | |
Temperature Coefficients of Vm (%) | -0.38%/℃ | |
Temperature Range | -40-85℃ | |
Output Tolerance (%) | ± 3% | |
Surface Maximum Load Capacity | 60m/s (200kg/sq.m) | |
Junction Box Type | PPO, black | |
Connectors and Cables Type | 2.5*2mm2 | |
Length of Cables (mm) | 750 | |
Cell Efficiency (%) | >18% | |
Glass | High transmissivity low-iron 3.2 mm toughened glass | |
Frame (Material, Corners, etc.) | Anodized Aluminum Alloy | |
Standard Test Conditions | AM1.5 1000W/sq.m 25℃ | |
Warranty | 5 years for the whole product, 90% power for 10years, 80% power for 25 years | |
FF (%) | >73.3% | |
Battery | Lead Acid | DC12V Deep Cycle for frequent cyclic discharge |
Internal Resistance | Approx. 7 mΩ | |
Operating Temperature | Discharge: -20-60℃ | |
Charge: 0-50℃ | ||
Storage: -20-60℃ | ||
Normal Operating Temperature | 25±5℃ | |
Float Charging Voltage | 13.6 to 13.8 VDC/unit Average at 25℃ | |
Recommended max. Charging Current | 15.0 A | |
Equalization and Cycle Service | 14.6 to 14.8 VDC/unit Average at 25℃ | |
Self Discharge | more than 6 months at 25℃, self-discharge ratio less than 3% per month at 25℃ | |
Container Material | A.B.S. UL94-HB, UL94-V0 Optional | |
Warranty | 2 years | |
Controller | PWM/MPPT | |
Programmed IC with dimming function | ||
LED | LED | Philips/Cree/Osram/Sumsang/LG/Bridgelux/Epistar |
Lumen | 100-120lm/W | |
Color Temperature | Cool White 5000K/6000K | |
Pure White 4000K | ||
Warm White 3000K | ||
LED Life | >50000hrs | |
CRI | >70 | |
Life | 50000hrs | |
Lens Material | PMMA/Arcylic | |
Beam Angle | 145° x 75° | |
Driver | Input Voltage | DC 24V |
PFC | >0.95 | |
Efficiency | >0.9 | |
THD | <15% | |
Others | Working Temperature | -40°C - +50°C |
Working Humidity | 10% - 90%Rh | |
Sensor | Body Sensor | |
Lamp Body Material | Aluminum Casing/Heat Sink | |
IP | 65 | |
Charge Time | 6hrs | |
Warranty | 3 years | |
Installation Height | 4/6m | |
Warranty | 100% Power | >15hrs |
50% Power | >30hrs | |
FAQ
1, What’s price per product ?
A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.
2, How to make payment?
We accept T/T or L/C.
3, What is your lead time?
Generally 1-5 weeks depends on the order quantity and your specific requirements.
4, Can you do OEM for us?
Yes, we can.
5, How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
