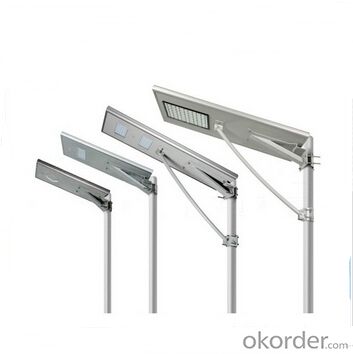

Solar Lantern
All in one solar street light , pure solar energy system power supply, which is used the latest Nande's independent intellectual property rights automatic adaptive infinite shift tracking system, high efficiency silicon plate ensures strong power supply under any weather condition, suitable for street lighting.
√ 12V Safe voltage, easy for installation;
√ 8 - 12hours/ day durative working mode ( adjustable upon per request );
√ 7 - 10 rainy days hardcore mode, high lighting performance throughout the year;
√ 5mm thickness (utmost ) steel light pole, inside & outside hot galvanizing processed;
√ Light fixture stoving plastic treament, smooth and glossy;
√ Wind loading rating: level 12;
√ Level of resistance to hail: 25mm, 80km/ Hour.
Feature:
1.All products have passed EMC and SAFETY tests.
2.Most products have achieved CE and UL certifications.
3.The main chip uses ST (STMicroelectronics).
4.MOS tubes (Field-effect reflection) adopt Toshiba, Fuji and other premium brands.
5.Electrolytic capacitor adpots black diamond and ruby etc.
6.All waterproof power pouring sealant adopts DowCorning.
7.The power adopts environmental friendly process, 100% accords with RoHs standard.
8.The power uses high-accuracy technology.
9.100% full load Temperature / Humidity / Burn-in test before products leave the factory.
10.The impact test is made to ensure products’ reliability.
11.All products passed -35℃ to +75℃ high-low temperature test chamber.
12.The working temperature is -30℃ to 50℃.
13.Lighting withstand test, lightning protection design above 4000V level
14. Efficiency and power rating meet international requirements. New half-power function.
Specification
Solar panel | Max Power: 65W, 18V (High efficiency solar cell of Sunpower from USA) |
Battery | LiFePO4 battery, 12V, 26Ah; Life Time: 5 years |
LED Lamp | Max Power: 20W, 12V; Lumen(LM): 2100-2200lm |
LED Chip: Bridgelux from USA with high brightness | |
Life Time: 50000 hours | |
Heat Radiator | 1) Stretch formed aluminum alloy heat radiator; 2) Heat emission vents |
Auto Controlling | 1) PIR motion sensor; 2) Light sensor; 3) Timing switch |
Lighting Mode | 1) Auto On/Off; 2) 30% power; 3) 100% power when people approaching |
Cover Materials | Aluminium Alloy (sealing with water-proof silicon) |
Full-Charge Time | 6 to 7 hours (by sun) |
Working Time | Works 36 - 48hours (last for 3 to 5 cloudy days) after fully charged. |
Packing Info | Packing: 1300*400*220mm, 0.12CBM; Weight: 17kg |
Loading: 1) 20GP: 220sets; 2)40HQ: 480sets | |
Certificate | CE / ROHS / IP65 |
Warranty | 2 years warranty; 24hours/day to support in the whole service-life. |
FAQ
1, What’s price per product ?
A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.
2, How to make payment?
We accept T/T or L/C.
3, What is your lead time?
Generally 1-5 weeks depends on the order quantity and your specific requirements.
4, Can you do OEM for us?
Yes, we can.
5, How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
