Loading Port:Shekou
Payment Terms:TT or LC
Min Order Qty:10 pc
Supply Capability:100000 pc/month

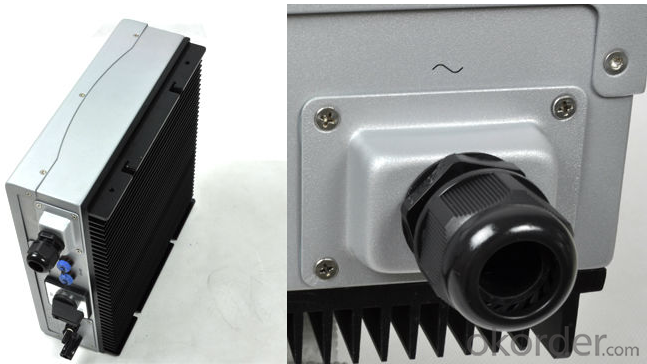

Solar power inverter 1000W-3000W grid tie solar inverter
Maximum efficiency 97.8%, wide input voltage range
Internal DC switch
Transformerless GT topology
Compact design
1500 2000 3000 4400 5000TL
General Descriptions
Leading-Edge Technology, CE,TUV ,VDE , SAA,DK5940 Certicificates.
> Maximum efficiency of 97.8 % and wide input voltage range
> Internal DC STWTICH
> Transformerless H6 topology
> Compact Design
> MPPT control
> MTL-String
> RS485 RS432 bluetooth Technology
> Comprehensive Growatt warranty program
> Easy country configuration, easy installation
> Multi-language display
Communications
> RS485 /GPRS interfaces
> Computer monitoring software
Safety
> Full protection functions:DC reverse polarity, AC short-circuit protection, ground fault monitoring, grid monitoring, integrate all-pole sensitive, leakage current monitoring unit.
> Standards complied: EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4,EN61000-3-2, EN50178, VDE0126-1-1,IEC-62109
FAQ
1. Have any design tool and how to use it?
Shine Design is the system design software just for inverters, It can conduct installers to figure out panel numbers for a system, panel numbers for each string, and which inverter model is suitable for the system. Moreover, it can print a design report after input all necessary parameters, can calculate DC/AC wire wastage, annual generation, etc.
2. Does the inverter have monitoring solutions for residential system?
For small rating system, we have wired two monitoring solution (ShineNet via RS232 or RS485). (a) Local wireless monitoring solution (ShineVision via RF module communication) (b) Global wireless monitoring solution (WIFI module via WIFI network)
3. Do you have free solution for monitoring?
ShineNet is an inverter monitoring software run in Windows XP, Windows Vista, Windows 7 operating system. It can monitor inverter via RS232 (or RS232 convert to USB cable) and RS485 wire connection. Customers can purchase the cable locally to get the inverter monitored, it is simple.
Technical Specifications
Model Specifications | 1500 | 2000 | 3000 | 4000 | 4400 | 5000 |
Input data(DC) | ||||||
Max. DC power | 1800W | 2300W | 3200W | 4200W | 4600W | 5000W/5200W* |
Max. DC voltage | 450V | 500V | 500V | 580V | 580V | 580V |
Start voltage | 150V | 150V | 150V | 150V | 150V | 150V |
PV voltage range | 100V-450V | 100V-500V | 100V-500V | 100V-580V | 100V-580V | 100V-580V |
MPP work voltage range/ nominal voltage | 120V-450V/360V | 120V-500V/360V | 120V-500V/360V | 120V-580V/360V | 120V-580V/360V | 120V-580V/360V |
Full load dc voltage range | 175V-450V | 195V-450V | 250V-450V | 250V-500V | 250V-500V | 250V-500V |
Max. input current | 10A | 12A | 15A | 20A | 20A | 20A |
Max. input current per string | 10A | 12A | 15A | 20A | 20A | 20A |
Number of independent MPP trackers /strings per MPP tracker | 1/1 | 1/2 | 1/2 | 1/3 | 1/3 | 1/3 |
Output (AC) | ||||||
Rated AC output power | 1600W | 2000W | 2850W | 3680W | 4200W | 4600W |
Max. AC power | 1650W | 2200W | 3000W | 4000W | 4400W | 4600/5000W* |
Max. output current | 8A | 11A | 15A | 16A | 21A | 22.7A |
AC nominal voltage; range | 220,230,240V; 180Vac-280Vac | 220,230,240V; 180Vac-280Vac | 220,230,240V; 180Vac-280Vac | 220,230,240V; 180Vac-280Vac | 220,230,240V; 180Vac-280Vac | 220,230,240V; 180Vac-280Vac |
AC grid frequency; range | 50,60H;±5 Hz | 50,60H;±5 Hz | 50,60H;±5 Hz | 50,60H;±5 Hz | 50,60H;±5 Hz | 50,60H;±5 Hz |
Power factor | 1 | 1 | 1 | 1 | 1 | 1 |
THDI | <3%< p=""> | <3%< p=""> | <3%< p=""> | <3%< p=""> | <3%< p=""> | <3%< p=""> |
AC connection | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase |
Efficiency | ||||||
Max. efficiency | 97% | 97% | 97% | 97.8% | 97.8% | 97.8% |
Euro weighted efficiency | 96.5% | 96.5% | 96.5% | 97.4% | 97.4% | 97.4% |
MPPT efficiency | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% | 99.5% |
Protection devices | ||||||
DC reverse polarity protection | yes | yes | yes | yes | yes | yes |
DC switch rating for each MPPT | yes | yes | yes | yes | yes | yes |
Output over current protection | yes | yes | yes | yes | yes | yes |
Output over voltage protection-varistor | yes | yes | yes | yes | yes | yes |
Ground fault monitoring | yes | yes | yes | yes | yes | yes |
Grid monitoring | yes | yes | yes | yes | yes | yes |
Integrated all - pole sensitive leakage current monitoring unit | yes | yes | yes | yes | yes | yes |
General Data | ||||||
Dimensions (W / H / D) in mm | 360/329/132 | 360/329/132 | 360/329/132 | 406/406/192 | 406/406/192 | 406/406/192 |
Weight | 11.5KG | 11.7KG | 12.2KG | 21KG | 21KG | 21KG |
Operating temperature range | –25°C ... +60°C (-13...+140°F) with derating above 50°C /122°F | –25°C ... +60°C (-13...+140°F) with derating above 50°C /122°F | –25°C ... +60°C (-13...+140°F) with derating above 50°C /122°F | –25°C ... +60°C (-13...+140°F) with derating above 50°C /122°F | –25°C ... +60°C (-13...+140°F) with derating above 50°C /122°F | –25°C ... +60°C (-13...+140°F) with derating above 50°C /122°F |
Noise emission (typical) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) | ≤ 25 dB(A) |
Altitude | 2000m(6560ft) without derating | |||||
Self-Consumption night | < 0.5 W | < 0.5 W | < 0.5 W | < 0.5 W | < 0.5 W | < 0.5 W |
Topology | transformerless | transformerless | transformerless | transformerless | transformerless | transformerless |
Cooling concept | Natural | Natural | Natural | Natural | Natural | Natural |
Environmental Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Relative humidity | 95% | 95% | 95% | 95% | 95% | 95% |
Features | ||||||
DC connection | H4/MC4(opt) | H4/MC4(opt) | H4/MC4(opt) | H4/MC4(opt) | H4/MC4(opt) | H4/MC4(opt) |
AC connection | Screw terminal | Screw terminal | Screw terminal | Screw terminal | Screw terminal | Screw terminal |
Display | LCD | LCD | LCD | LCD | LCD | LCD |
Interfaces: RS485/RS232/Bluetooth / RF/Zigbee/Wifi | yes/yes/opt/opt/opt/opt | yes/yes/opt/opt/opt/opt | yes/yes/opt/opt/opt/opt | yes/yes/opt/opt/opt/opt | yes/yes/opt/opt/opt/opt | yes/yes/opt/opt/opt/opt |
Warranty: 5 years / 10 years | yes /opt | yes /opt | yes /opt | yes /opt | yes /opt | yes /opt |
Certificates and approvals | CE,VDE 0126-1-1,DK5940,G83/1-1,G59/2,RD1663,EN50438,VDE-AR-N4105,CEI-021,IEC-62109,ENEL-Guide | CE,G83/1-1 | CE,VDE 0126-1-1,DK5940,G83/1-1,G59/2,RD1663,EN50438,IEC-62109,ENEL-Guide | |||
