Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:20000000 watt/month
1.Structure of Solar Module Description
Solar Polycrystalline Series Ⅰ (200W-----215W)
2.Characteristics of the Solar Module
| Max Power Voltage Vmp (V) | 26.84 | 27 | 27.3 | 27.6 |
| Max Power Current Imp (A) | 7.45 | 7.6 | 7.7 | 7.8 |
| Open Circuit Voltage Voc (V) | 32.7 | 33 | 33.3 | 33.8 |
| Short Circuit Current Isc (A) | 8.16 | 8.28 | 8.4 | 8.5 |
| Max Power Pm(W) | 200 | 205 | 210 | 215 |
3.Limits of the Solar Module
Operating Temperature ﹣40℃to+85℃
Storage Temperature ﹣40℃to+85℃
Max System Voltage 1000VDC
4.Specifications of the Solar Module
Material | the Solar Module |
Cell | Polycrystalline Cell 156X156 mm |
Packing | 720 Pcs/40ft (H) Container |
| Weight | 17kg |
| Tolerance | 0～+5W |
Certificate | TUV VDE UL |
5.Applications of the Solar Module
1.Electricity
2.Heat energy

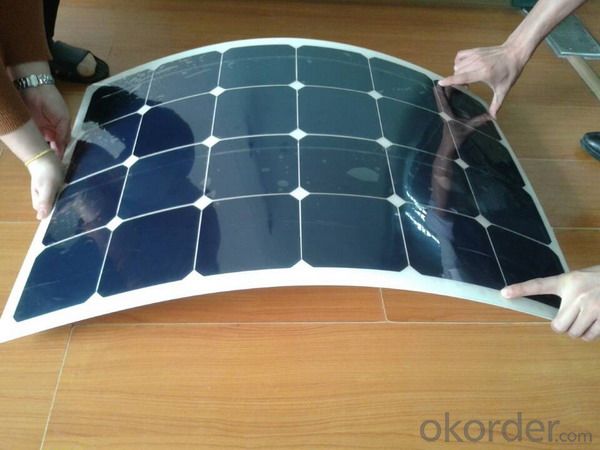

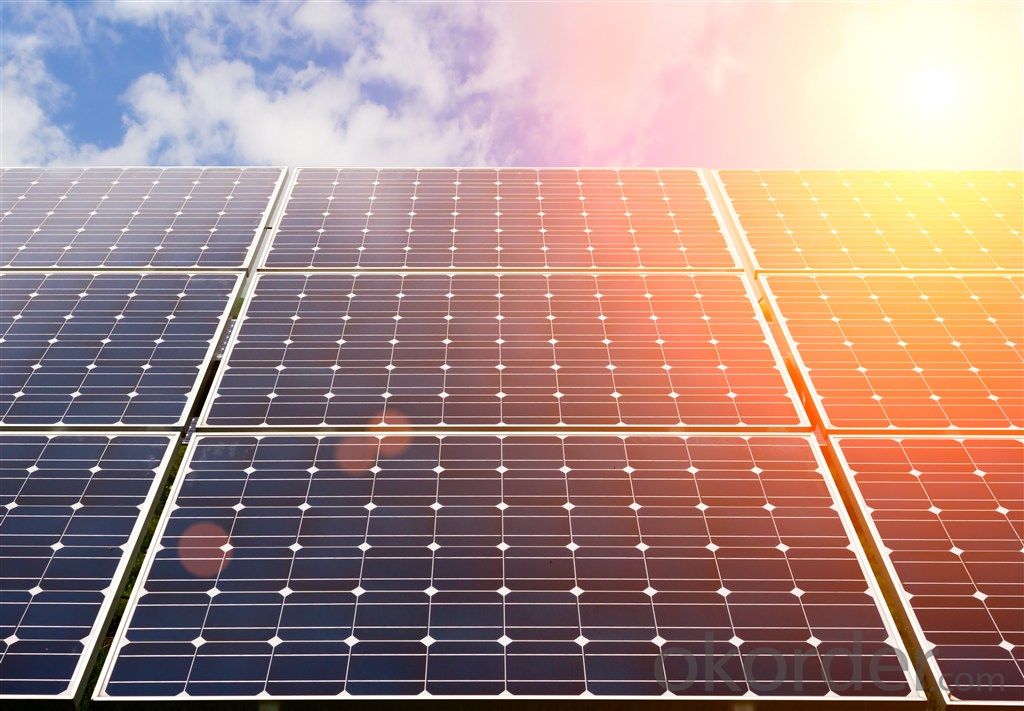

6.IMages of the Solar Module
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
